Product Introduction

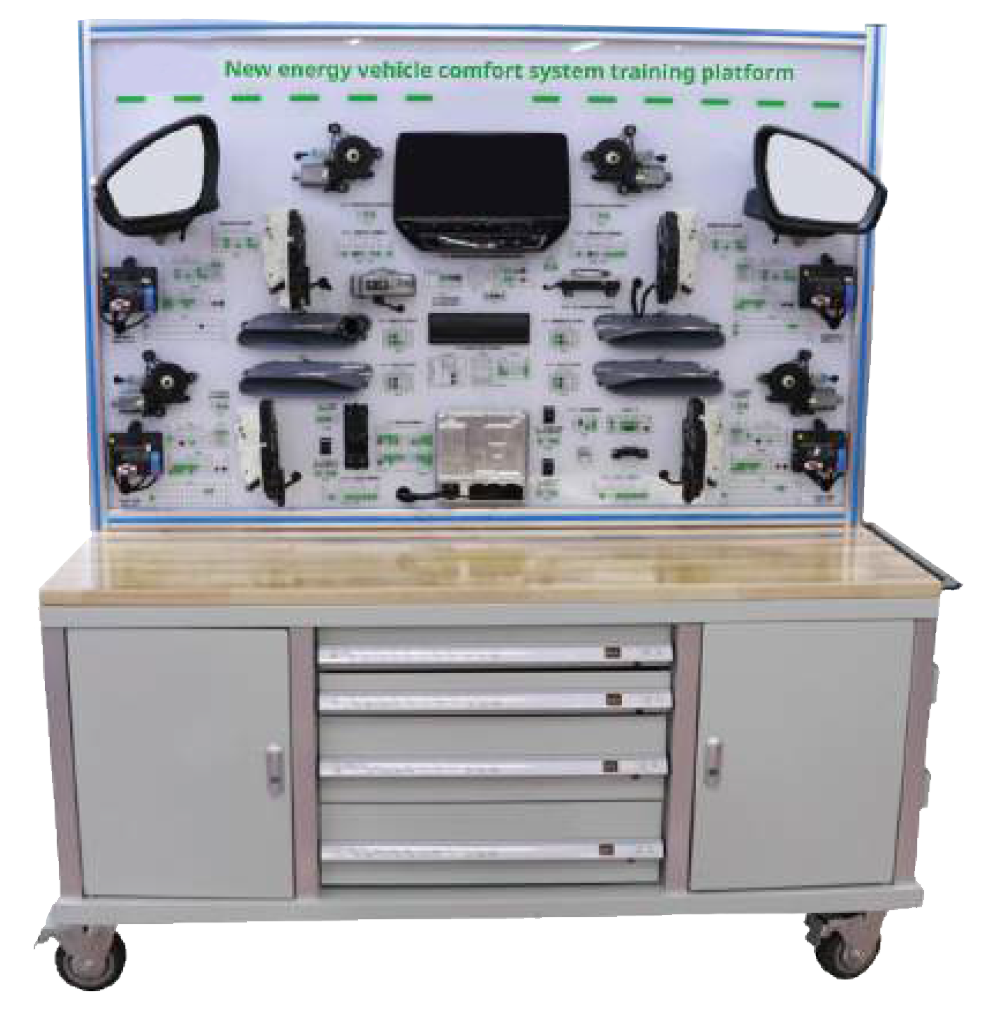

The comfort system training platform is designed and developed by our company based an the Volkswagen ID.4 new energy pure electric vehicle comfort system. The comfort system training platform and the lighting system training platform must be used in conjunction to complete the new energy vehicle central door locking system, electric rearview mirror, window lift control system, one-button start structural awareness, detection, diagnosis and maintenance, etc. Practical training teaching and assessment.

Students can directly perform relevant circuit fault simulation settings through the fault setter on the training platform. After fault simulation, students can directly measure signals on the corresponding detection terminals of the detection panel on the training platform, The comfort system training platform can meet the needs of detecting, diagnosing and repairing locking and antitheft systems; detecting, diagnosing and  repairing body comfort systems; detecting, diagnosing and repairing infotainment systems; detecting, diagnosing and repairing practical training and teaching in network-connected architecture learning situations assessment.

Technical Specifications

• The dimensions of the whole machine are 1900"700"°1 700mm
• Teaching panel size: 1400*730*4mm (length*width*thickness)
• Working voltage: Input AC220V 50HZ Working: OC/12V

Practical Training Function

• Cognitive fuse relay detection and diagnosis training teaching and assessment
• Detection and diagnosis of window lift inoperability, practical training, teaching and assessment
• The electric rearview mirror cannot be adjusted. Detection and diagnosis training teaching and assessment
• Central door lock working abnormality detection and diagnosis practical training teaching and assessment
• One-click Start of practical training teaching and assessment of functional failure detection and diagnosis
• The central display screen cannot display the detection and diagnosis training teaching and assessment
• The diagnostic system cannot communicate with the detection and diagnosis training

Composition Of Teaching Resources

Project 1. System cognition

• Battery awareness
• Awareness of the ignition switch
• Cognition and working principle of fuse box
• Cognition of main body ECU
• Cognition and working principle of window glass regulator
• Cognition and working principle of car door lock assembly
• Cognition and working principle of the main switch of the window lifter

Project 2: Lighting system fault diagnosis and troubleshooting

• Troubleshooting when the diagnostic instrument cannat communicate
• Troubleshooting when the left front window motor is not working
• Troubleshooting of poor left rear door lock
• Troubleshooting when the left reardew mirror does not work
• Troubleshooting when the right rearview mitror does not work
