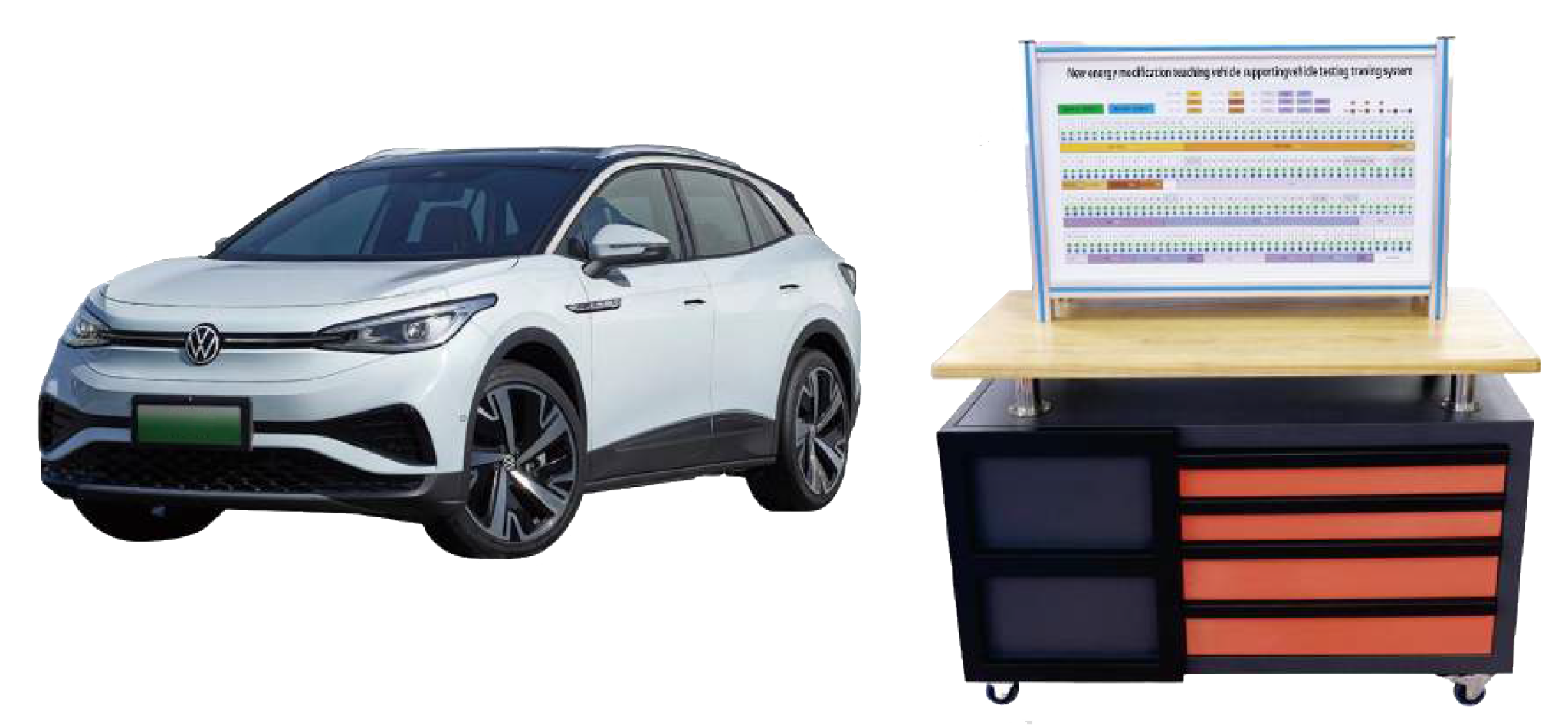

Product Functions

1. The vehicle is normal under all working conditions and can start, drive, and operate various system functions, etc.; it can read vehicle information, code query, read fault codes, high-voltage data flow, and execute component testing through the original factory diagnostic computer and diagnostic socket, Other test functions are truly close ta the work and content of the maintenance front line.
2. High-voltage maintenance based on the entire vehicle can truly reflect the diagnosis and maintenance status. When implementing the diagnostic maintenance process as a standard, it is necessary to place high-voltage warning lines and high-voltage warning signs on the high-voltage system to demonstrate maintenance professionalism and high-voltage safety awareness.
3. In order to ensure the efficient operation of the equipment, the battery management system (BMS), AC charging unit (OBC), and motor controller (M1) are directly designed for dedicated external connections. After vehicle modification, rapid measurement and diagnosis module replacement can be achieved through lossless connections

Practical Training Function

1. Practical training, teaching and assessment on vehicle system cognition and use of maintenance manual.
2. New energy vehicle diagnosis and data flow reading practical training teaching and assessment.
3. Guided functional query and high-voltage system data training, teaching and assessment.
4. Practical training teaching and assessment of vehicle failure diagnosis and maintenance.
5. Practical training teaching and assessment of fault diagnosis and maintenance of the vehicle that cannot be powered on.
6. Practical training teaching and assessment of vehicle inoperability fault diagnosis and maintenance.
7. Practical training, teaching and assessment of vehicle electrical system fault diagnosis and maintenance.

Product Specifications

1. The dimensions of the whole machine are 1500*700*1700mm (length*width*height)
2. Teaching panel size: 1400*730*4mm (length*width*thickness)
