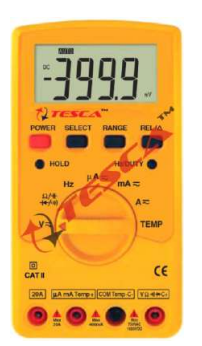

Multimeter, Digital

Order Code: 20214410.1.8

Category: General Lab Equipment III

Technical Specification: DC voltage: 400mV/4V/40V/400V/600V ± (0.5% +3) AC voltage: 4V/40V/400V/600V ± (1.2% +5) DC current: 400uA/4000uA/40mA/400mA ± (1.0% +5), 10A ± (2.0% +10) AC current :400uA/4000uA/40mA/4...



SPECIFICATION

Technical Specification:

  • DC voltage: 400mV/4V/40V/400V/600V ± (0.5% +3)
  • AC voltage: 4V/40V/400V/600V ± (1.2% +5)
  • DC current: 400uA/4000uA/40mA/400mA ± (1.0% +5), 10A ± (2.0% +10)
  • AC current :400uA/4000uA/40mA/400mA ± (1.2% +5), 10A ± (2.5% +10)
  • Resistance : 400Ω/4KΩ/40KΩ ± (0.8% +5)
  • Capacitance: 5nF/50nF/500nF/5uF/50uF/100uF ± (3.0% +5)
  • Duty cycle 0.1% ~ 99.9% ± (2.0% +5)
  • Temperature (° C) -20 ° C ~ 1000 ° C ± (3.0% +3)
  • Temperature (° F) -4 ° F ~ 1832 ° F ± (3.0% +3)
  • Power supply: 2 × 1.5V AAA
  • Size: 150mm × 74mm × 41mm
  • Weight: 202g
  • Document Required
  • Original Catalog
  • Manufacture Authorization Letter
  • Warranty: Minimum 01 (One ) Year warranty
