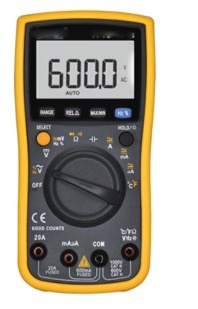

Multimeter (Digital)

Order Code: 24258353.3

Category: General Lab Equipment V

SPECIFICATIONS:- DC Voltage  : 60 / 600mV / 6 / 60 / 600 / 1000V Accuracy :  ±(1.0% rdg + 4 dgt) on 60 / 600mV , ± (0.5% rdg + 2 dgt) on 6 / 60 / 600V , ± (1.0% rdg + 3 dgt) on 1000V AC Voltage :  60 / 60...



SPECIFICATION

SPECIFICATIONS:-

  • DC Voltage  : 60 / 600mV / 6 / 60 / 600 / 1000V
  • Accuracy :  ±(1.0% rdg + 4 dgt) on 60 / 600mV , ± (0.5% rdg + 2 dgt) on 6 / 60 / 600V , ± (1.0% rdg + 3 dgt) on 1000V
  • AC Voltage :  60 / 600mV / 6 / 60 / 600 / 750V
  • Accuracy :  ± (1.0% rdg + 5 dgt) on all ranges except , ± (1.2% rdg + 5 dgt) on 60 / 600mV , ± (1.5% rdg + 5 dgt) on 750V
  • AC Response :  40Hz ~ 1KHz
  • DC Current  : 600 / 6000 μA / 60 / 600mA / 6 / 20A
  • Accuracy  : ± (1.0% rdg + 2 dgt) on 600 / 6000 μA  , ± (1.2% rdg + 3 dgt) on 60 / 600mA , ± (1.5% rdg+ 5 dgt) on 6 / 20A
  • AC Current :  600 / 6000 μA / 60 / 600mA / 6 / 20A
  • Accuracy :  ± (1.5% rdg + 5 dgt) on 600 / 6000 μA , ± (2.0% rdg + 5 dgt) on 60 / 600mA  , ± (2.5% rdg + 5 dgt) on 6 / 20A
  • AC Response :  40Hz ~ 1KHz
  • Resistance :  600Ω / 6 / 60 / 600KΩ / 6 / V V 60MΩ
  • Accuracy :  ± (1.2% rdg + 2 dgt) on 600Ω & 6Ω , ± (1.0% rdg + 2 dgt) on 6 / 60 / 600kΩ , ± (1.5% rdg + 2 dgt) on 60MΩ
  • Capacitance  : 9.999 / 99.99 / 999.9nF / 9.999 / 99.99 / 999.9μF / 9.999mF
  • Accuracy :  ± (2.0% rdg + 4 dgt) on all ranges except , ± (3.0% rdg + 4 dgt) on 9.999mF
  • Frequency  : 99.99Hz ~ 10.00MHz
  • Accuracy :  ±(0.05% rdg + 4 dgt)
  • Duty Cycle  : 0.1% ~ 99.9%
  • Accuracy :  ± (0.05% rdg + 4 dgt)
  • Temperature :  -40°C ~ 1000°C /-40°F ~ 1832°F
  • Accuracy :  ± (3.0% rdg + 4 dgt) on-40°C ~ 0°C / -40°F ~32°F , ± (1.0% rdg + 3 dgt) on 0°C ~ 400°C / 32°F ~ 750°F , ± (2.0% rdg + 5dgt) on 400°C ~ 1000°C / 750°F ~ 1832°F
  • Measuring Category : CAT III 1000V, CAT IV 600V
  • SP Function  : Diode Test, Audible Continuity, Data Hold Power Two 1.5V 'AA' Battery
  • Battery Life :  200 hours typical
  • Dimensions  : 180 x 90 x 52mm (approx.)
  • Weight (app.)  : 370gms Including Battery (approx.)
