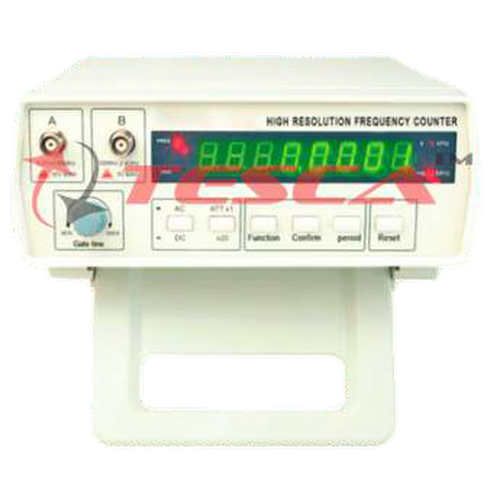

Multifunction Counter

Order Code: 22235688.14

Category: General Lab Equipment I

Features: 8 Digits Green LED Display Selective Range, High Stability Two Channels, Operation mode memory Range and Gate time adjustable Power Supply : AC 220V, +10% Specification: Basic Function: Range Frequency measur...



SPECIFICATION

Features:

  • 8 Digits Green LED Display
  • Selective Range, High Stability
  • Two Channels, Operation mode memory
  • Range and Gate time adjustable
  • Power Supply : AC 220V, +10%

Specification:

  • Basic Function: Range
  • Frequency measurement : CH A: Measuring range:0.01Hz~50MHz, Basic accuracy: ±(2x10-5+3)
    • CH B: Measuring range B:50MHz~2.4GHz,
    • Basic accuracy: ±(2x10-5+3)
  • Cyclic measurement : CH A: Measuring range:0.02us~10s, Sensitivity 80mVrms>1S
    • CH B: Measuring range:0.5ns~0.02us, Sensitivity 500mVrms<1S
  • Cyclic measurement range : 0.5ns~10s
  • Gate adjust range : 100ms~10s Continuious adjustable
  • Attenuation : 20dB
  • Input impedance : CH A: 1M ohm; CH B: 50 ohm
  • Dimension 270 x 215 x 100mm
  • Weight Approx. 1.6kgs
  • Power 220V/110V±10%, 50Hz/60Hz±5%
