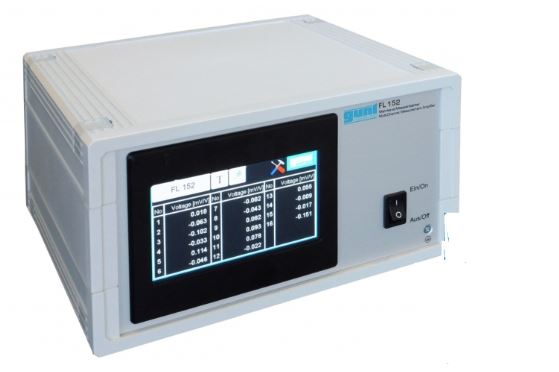

Multi channel measuring amplifier

Order Code: 23246417.22

Category: General Lab Equipment II

Multi-channel measuring amplifier for processing of strain gauge  signals Strain gauge connection in half or full bridge configuration Strain  gauge connection  via  68-pin  input port Automatic tare o...



SPECIFICATION

  1. Multi-channel measuring amplifier for processing of strain gauge  signals
  2. Strain gauge connection in half or full bridge configuration
  3. Strain  gauge connection  via  68-pin  input port
  4. Automatic tare of measured values
  5. Processing  of  measured  values  directly  in the measuring amplifier or using the supplied software on a PC
  6. Integrated  touchscreen for  operation  and display of measured and processed  values
  7. Integrated software for  experimental units  on stress and strain analysis
  8. GUNT  software for data  acquisition  via USB under Windows 8.1, 10


Technical data.
Amplifier number of input channels: 16 integrated  touchscreen  4,3",  480*272  Pixel, 16-bit color Strain gauge connection in half or full bridge configuration resistance: min. 350 Ohm/strain gauge strain gauge supply voltage: +5VDC Input voltage: max. ±32mV 230V, 50Hz, 1 phase 230V, 60Hz, 1 phase: 120V. Anu- ULICGA ontian Dimensions and weight LxWxH: 230x200x120mm Weight: approx. 2kg Required for operation PC with Windows recommended Manual  (English): full experiment and operations
