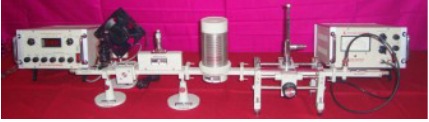

SCOPE OF LEARNING Microwave Test Benches are precision-made microwave systems that use standard rectangular waveguide components to illustrate essential concepts in this field. TECHNICAL SPECIFICATIONS The Compact Microwave Lab Kit consists of the...
SCOPE OF LEARNING
Microwave Test Benches are precision-made microwave systems that use standard rectangular waveguide components to illustrate essential concepts in this field.
TECHNICAL SPECIFICATIONS
The Compact Microwave Lab Kit consists of the following components and instruments:
Components and Instruments
1. Klystron Power Supply Unit – 01 No.
2. Gunn Power Supply – 01 No.
3. VSWR Meter – 01 No.
4. Gunn Oscillator – 01 No.
5. PIN Modulator – 01 No.
6. Klystron Mount – 01 No.
7. Klystron Tube 2K25 – 01 No.
8. Isolator – 01 No.
9. Variable Attenuator – 01 No.
10.Slotted Line – 02 No.
11.Tunable Probe – 02 No.
12.Matched Termination – 01 No.
13.Detector Mount – 01 No.
14.Frequency Meter Direct – 01 No.
15.Movable Short – 01 No.
16.W/G Stands – 01 No.
17.Hardware Fixing – 01 No.
18.BNC Cables – 01 No.
19.Experimental Manual – 01 No.
20.Demonstration Video (CD or WhatsApp) – 01 No.
21.Horn Antenna – 02 No.
List of Experiments
1. Characteristics of Klystron and its Mode
2. Measurement of Isolation of Isolator
3. Measurement of Attenuation of Attenuator
4. Frequency Measurements
5. VSWR Measurements
6. Wavelength Measurements
7. Characteristics of Gunn Diode
8. Modulation Measurements of PIN Modulator
