Set up designed to study the connection procedure and testing procedure of electric 3 or 4 wheeler set up using various components of electric vehicle like battery , EV.Motors , drive etc , Set up consists of

Control Panel ( with Drive, battery, charger etc)

Controller

• Type : MOSFET based Controller
• Input Voltage : 48-60VDC
• Maximum Current : 30A

Battery

• Type : lithium ion battery -LPF
• Voltage : 60v
• Power/Current : 18Ah
• Features : in built Smart BMS with PC interface Software and Bluetooth-Mobile App software -optional features.

Charger

• Type : MOSFET-based Charger
• Input Voltage: 170-250VAC
• Output Voltage: 62V
• Charging Current: 5A
• Charging Time : 4-5 Hour
• Features : Led's for status indicator

Panel

• Powder coated M.S Panel with diagram Stickered front panel to fix the Above Motor, controller and Battery and also to fix the below mentioned components
• Steering with Pedal Accelerator for speed control
• F/R selection switch, Left/Right indicator switch with Lamp
• Head light switch with Lamp, Horn switch with buzzer
• Brake control lever(optional)
• Digital LCD-indicator, To indicate
  1. Speed in KM/H
  2. Motor Speed in Rpm
  3. Left indicator status
  4. Right indicator status
  5. Head light Indicator status
• ON/OFF Switch with Key
• DC-DC Converter for Light (48V TO 12V, 10A)
• Necessary Banana terminals provided for motor, Battery, Controller input and outputs terminations for external patching.
• Panel Meter for Battery voltage and Current
• Necessary terminations for controller control signal (like hall sensor, indicator, throttle) output and inputs for external patching.
• Necessary Fuse and MCB provided for battery, Motor

Features

• Provision / Facility to Interface with External IGBT Power Module and Controller set up (FPGA/MATLAB/DSPIC etc)- for Motor control and testing

Optional Features

1. PC Software for BMS -Smart Battery (OP2)
2. Blue tooth Mobile app-connectivity for BMS -Smart Battery (OP3)

Possible Experiments

1. Study and testing of speed control of Hub Motor used in two wheelers
2. Study and testing of 3/4 wheeler control components functions (pedal Acce function, F/R switch function, Left/Right indicator switch function, Head light switch function, Horn switch function, Brake control lever function, Digital LCD-Indicator function etc)
3. Study and Testing of battery charging and discharging - BMS system using PCSoftware and Mobile blue-tooth App (User will provide computer/Mobile)- optional features

The performance of this model could even better than the performance of bench top oscilloscope. It has 4 analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth. It is powered by USB2.0 Interface, plug and play device with small size which is easy for carrying. High cost performance, pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function

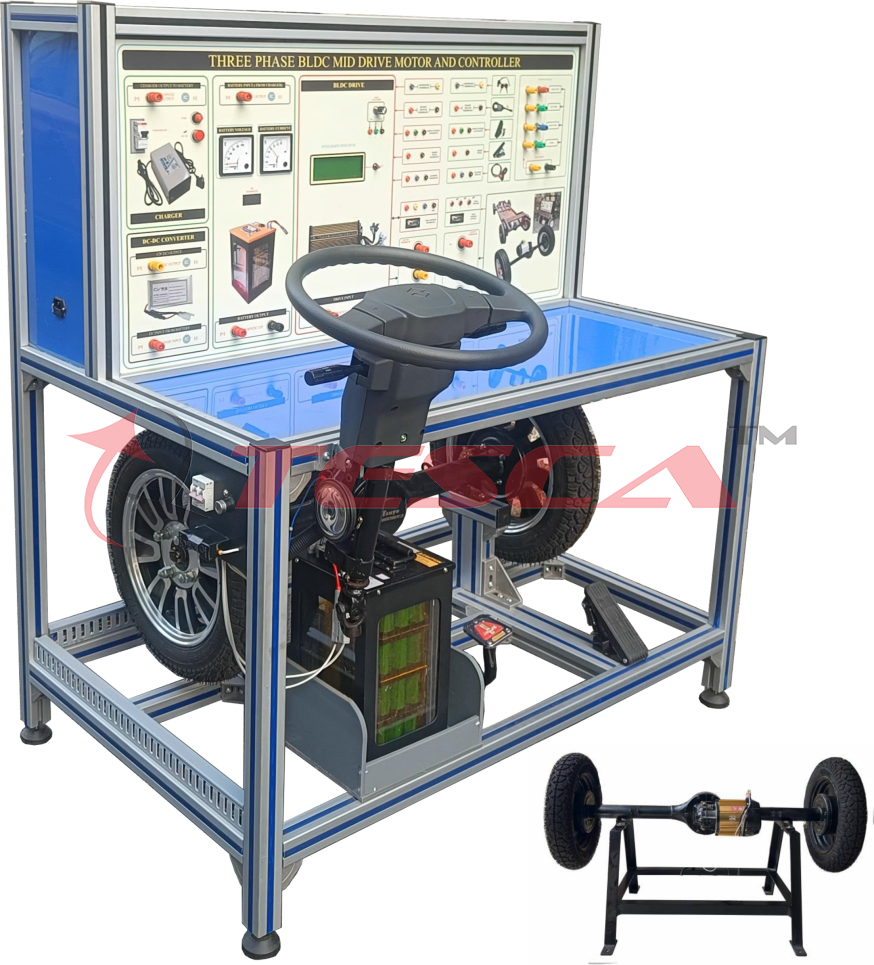

1. Three Phase Bldc Mid Drive Motor-Order Code -EV46011M

• Voltage : 60V
• Motor Power 1000W
• Maximum speed 25-35KMPH
• Sensor: 3 Numbers of Hall sensor
• Load: Differential gear, Drum & tyre
• Tire: Brand New

Optional: Pc Based Measurement And Acquisition System For Motor Voltage And Current :  Order Code - EV-DAQ
