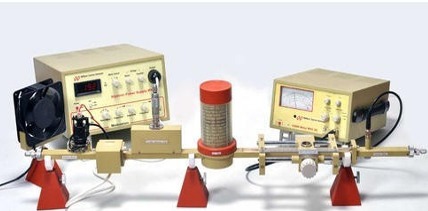

Microwave Test Bench (Gunn Based)

Order Code: 24258359.19

Category: General Lab Equipment V

SETUP SPECIFICATIONS Essential Components: Gunn Power Supply  VSWR Meter  Gunn Oscillator (10 mW)  PIN Modulator  Isolator  Frequency Meter (Direct Readout)  Variable Attenuator (20 dB)  Slotted...



SPECIFICATION

SETUP SPECIFICATIONS
Essential Components:

  • Gunn Power Supply
  • VSWR Meter
  • Gunn Oscillator (10 mW)
  • PIN Modulator
  • Isolator
  • Frequency Meter (Direct Readout)
  • Variable Attenuator (20 dB)
  • Slotted Section
  • Tunable Probe
  • Detector Mount
  • Matched Termination
  • Waveguide Stand
  • Waveguide Cavity
  • Precision Movable Short
  • Solid Dielectric Cell
  • Liquid Dielectric Cell
  • Phase Shifter
  • Cooling Fan

Accessories & Additional Components:

  • Dielectric Materials: Ebonite, Nylon, Perspex, Teflon, Wax
  • Cables: BNC to BNC, N to TNC
  • Brass Fly Nut & Screws Set
  • Microphone & Earphone
  • CD with Product Tutorial Video, Smith Chart, and Wall Chart
  • Dielectric Constant Measurement Experiment Setup
