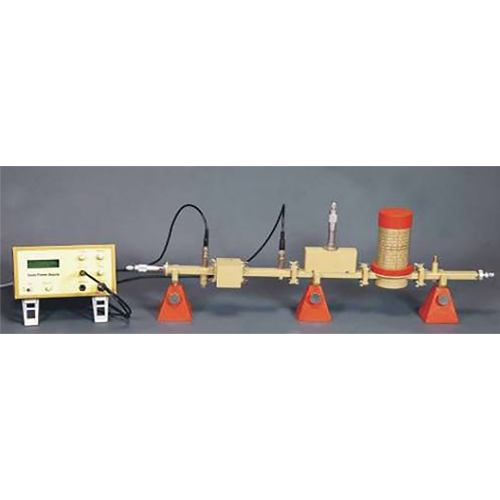

Microwave Test Bench
Order Code: 18193311.1
Category: General Lab Equipment III
Didactic bench for the study of microwaves The set comes in a storage case Composed of: 1 Gunn diode oscillator placed in a cavity with a screw adapter Frequency range: band X 8.5 to 12.4 GHz Power: 15 mW 1 Micrometer Screw Adapter 1 Meas...
SPECIFICATION
Didactic bench for the study of microwaves
The set comes in a storage case Composed of:
1 Gunn diode oscillator placed in a cavity with a screw adapter
Frequency range: band X 8.5 to 12.4 GHz
Power: 15 mW
1 Micrometer Screw Adapter
1 Measuring line slotted
1 PIN diode modulator
1 Crystal detector
1 Ondemeter for frequency measurement in waveguides
1 Variable Attenuator
1 Fixed Attenuator
2 waveguides: 22.86 x 10.16 mm
1 Adapted charge
1 Directional Coupler
1 Hybrid Tee (Magic)
1 Adapter for Guide / Coaxial Transmission
2 horn antennas
2 Reflector mounts
2 Reflectors
1 Short circuit board
8 Guide Supports
1 Power supply with mains cable 220V
1 1KHz generator with cable for 220V mains
3 BNC / BNC cables
1 BNC / 2 Banana plugs
1 Cable Plug Jack / 2 Banana plugs
1 Jack / BNC Jack Cable
1 Experimental Manual
Delivered with :
1 Digital Display RF Power Meter for Power Measurement (Composed of measuring device, probe and cable)
1 TOSMETER for the measurement of the standing wave ratio, delivered with mains cable and instructions for use
