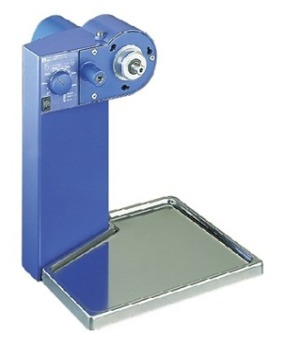

Microfine grinder drive

Order Code: 24258342.13.1

Category: General Lab Equipment V

Features : Continuously operating universal grinder with a speed range of 3.000 - 6.500 rpm. Powerful drive- Easy to clean working surface made of stainless steel Two different grinding heads can be attached to the drive Heads are easily ...



SPECIFICATION

Features :

  • Continuously operating universal grinder with a speed range of 3.000 - 6.500 rpm.
  • Powerful drive- Easy to clean working surface made of stainless steel
  • Two different grinding heads can be attached to the drive
  • Heads are easily changeable
  • Grinding heads not incl. with delivery

Technical Specifications :

  • Process type : inline
  • Operating principle : cutting/impact
  • Motor rating input [W] : 1000
  • Motor rating output [W] : 500
  • Speed range [rpm] : 3000 - 6500
  • Power-ON time [min] : 120
  • Power-OFF time [min] : 30
  • Dimensions (W x H x D) [mm] : 320 x 380 x 300
  • Weight [kg] : 9.7
  • Permissible ambient temperature [°C] : 5 - 40
  • Permissible relative humidity [%] : 80
  • Protection class according to DIN EN 60529 : IP 22
  • Voltage [V] : 230
  • Frequency [Hz] : 50/60
  • Power input [W] : 1000
