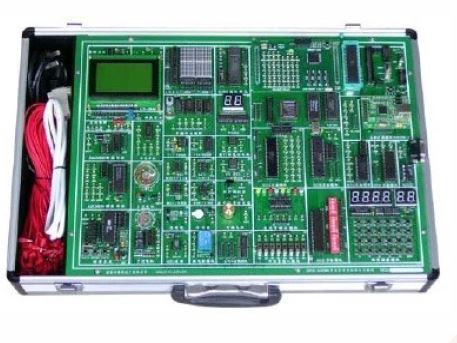

Micro Controller Trainer

Order Code: 23247243.55

Category: General Lab Equipment III

Micro-controller: 8031/8051/8751/89C51 compatible. Main RAM: 32KB (62256). Monitor ROM: 32KB (27256). Display Unit: LCD (16 x 2 LINE). I/O Port: CPU I/O PORT, 8255A x 1. Serial Port: RS-232C. Dot Matrix LED: 8 x 8 (3 Color). Keyboard...



SPECIFICATION

  • Micro-controller: 8031/8051/8751/89C51 compatible.
  • Main RAM: 32KB (62256).
  • Monitor ROM: 32KB (27256).
  • Display Unit: LCD (16 x 2 LINE).
  • I/O Port: CPU I/O PORT, 8255A x 1.
  • Serial Port: RS-232C.
  • Dot Matrix LED: 8 x 8 (3 Color).
  • Keyboard: 16 keys for data, 8 keys for function.
  • Software: 8051 Assembler, C-Compiler, and IDE Emulation Software.
  • Integration and Development Environment Program.
  • Display 8051 internal architecture or equivalent.
  • Source code editing, assembling, compiling, and program writing.
  • Code memory disassemble
  • 8051 Register, internal/external memory dump, and editing function.
  • Source-level debugging function.
  • Pop-up menu and 89C51 WRITE function.
  • A/D, D/A Converter facility.
  • D.C Motor and Photo Interrupter sensor.
  • Speaker and Step motor interface circuit.
  • Expansion Connector System bus.
  • Minimum 40 pins text tool.
  • Power source: 220V AC ±10%, 50Hz.
  • Accessories: Software CD, PC interface cable, and Instruction manual.
