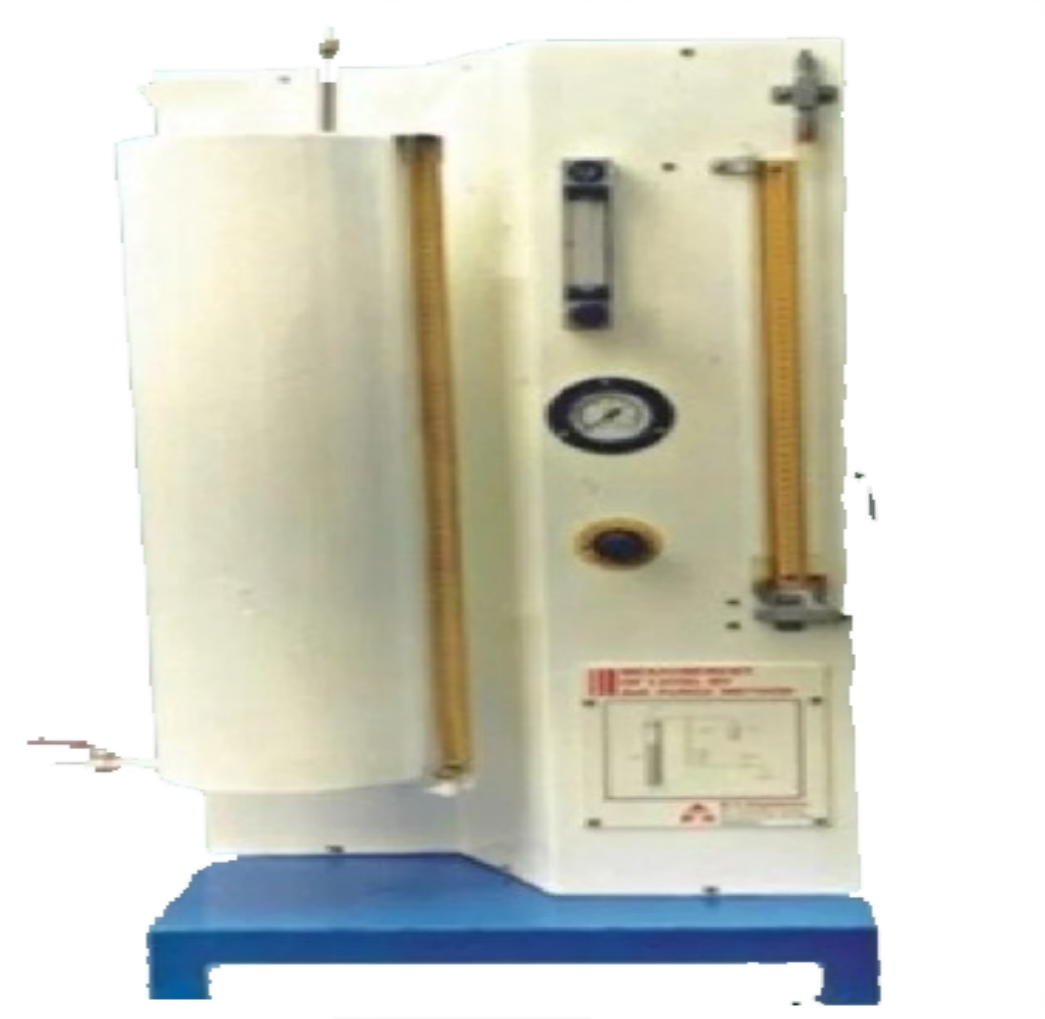

Measurement Of Level By Air Purge Method

Order Code: 14251

Category: Process Control Trainers

Introduction: The apparatus is based on the principle that when compressed air is purged in to the pipe, the liquid with in the pipe is displaced by air pressure equal to the hydrostatic force of the liquid in the tank or vessel. The apparatus consis...



SPECIFICATION

Introduction: The apparatus is based on the principle that when compressed air is purged in to the pipe, the liquid with in the pipe is displaced by air pressure equal to the hydrostatic force of the liquid in the tank or vessel. The apparatus consists of a pipe lowered into the water tank to appoint about 1” above the bottom of the tank.

Specifications: Water Tank:Material Stainless Steel, Diameter 200 mm,Height500 mm.Air Purging Valve:¼” BSP Manometer:Type U Tube Manometer,Height 300mm.Bubbler Pipe:Material Stainless Steel.
