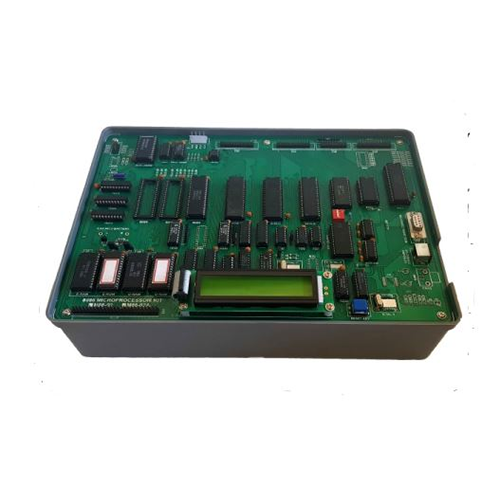

MDA 8086 microprocessor Training system

Order Code: 18193692.70

Category: General Lab Equipment III

Features Program debugging function by PC. Program Download and trace function. Display to register contents. Memory contents modification and dump function. Various command function. Include with step motor interface circuit. Dot m...



SPECIFICATION

Features

  • Program debugging function by PC.
  • Program Download and trace function.
  • Display to register contents.
  • Memory contents modification and dump function.
  • Various command function.
  • Include with step motor interface circuit.
  • Dot matrix experiment
  • LCD(Liquid Crystal Display) 16 X 2 line experiment.
  • D/A and A/D converter experiment.
  • Sound experiment by speaker.
  • Interrupt experiment.
  • A/D converter experiment by thermistor.
  • D/A converter experiment by Level meter.
  • Key board experiment.
  • External interface connector.
  • LED display of current system bus status.
  • +5V, +12V, -12V S.M.P.S(Free Voltage) Power(110V/220V).
  • Wood case
