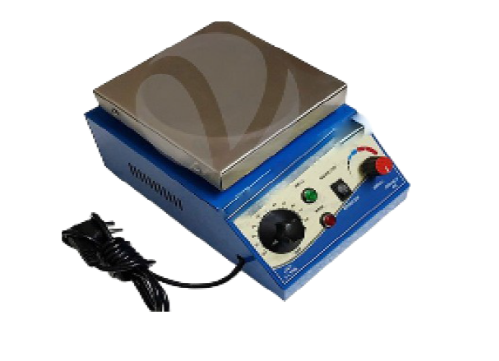

Magnetic Stirrer With Hot Plate
Order Code: 21224975.17
Category: General Lab Equipment II
Work plate dimension φ135mm(5 inch) Work plate material stainless steel cover with ceramic Motor type Brushless DC motor Motor input power 5W Motor output power 3W Power 515W Heating output 500W Voltage 100-120V 60Hz Stirring pos...
SPECIFICATION
- Work plate dimension φ135mm(5 inch)
- Work plate material stainless steel cover with ceramic
- Motor type Brushless DC motor
- Motor input power 5W Motor output
- power 3W Power 515W
- Heating output 500W
- Voltage 100-120V 60Hz
- Stirring positions 1 Max. stirring quantity 3L Max.
- Magnetic bar[length] 50mm Speed range 200-1500rpm
- Speed display LED Temperature display
- LED Speed display resolution ±1rpm
- Heating temperature range Room Temp.-280°C, increment 1°C
- Temperature control accuracy ±1°C(<100°C) ±1%(>100°C)
- Overheating protection 320°C
- Temperature display accuracy ±1°C
- External temperature sensor PT1000 (accuracy ±0.5°C) "Hot"
- Warning 50°C Protection class IP21
- Dimension[WxDxH] 150×260×80mm
- Weight 1.8kg Permissible ambient temperature and humidity 5-40°C, 80%RH
- Controls (Digital/Analog)
- Digital Multiposition No
- Min Speed (RPM) 0 Max Speed (RPM) 1500
- Max Stirring Quantity/Capacity (L) 10 Max
- Temp Range (°C) 550 Heat Output (w) 1000 Plate Diameter (mm) 177.8
- Plate Material Ceramic
- Timer No, RS-232 No
