Magnetic Pump System

Order Code: 24258098.46

Category: General Lab Equipment V

Magnetic Pump System: This unit shall add to a separately specified pump workstation to permit study of centrifugal pumps, driven by magnetic couplings. The system shall include: magnetic pump, piping network, and student curriculum. ...



SPECIFICATION

  • Magnetic Pump System: This unit shall add to a separately specified pump workstation to permit study of centrifugal pumps, driven by magnetic couplings.

  • The system shall include: magnetic pump, piping network, and student curriculum.

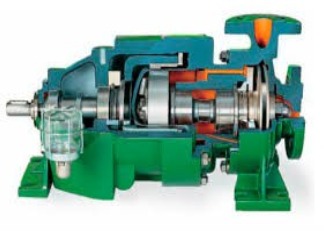

  • These components shall meet the following minimum specifications: Magnetic Pump - This pump shall be an industrial grade unit with c-face mount, polypropylene housing construction, shaft driven by a separately specified electric motor, 13 gpm @ 8 ft head and 1725 rpm, maximum 16 ft., centrifugal impeller design.

  • Piping Network-A piping network shall be supplied, which connects the pump to a separately- specified load valve and flow and pressure instrumentation.

  • This network shall include: (1)-Pressure line, braided wire rubber hose construction ,(1)-Suction line, braided wire rubber hose construction with pressure tap for connection to instrumentation,(1)-Pressure gauge hose, with quick connect, polyurethane, 1/8-in ID Relief Valve - Direct-operated design, aluminum body, adjustment knob, 50-175 psig adjustment range.

  • Student Curriculum - The curriculum must be capable of both self-directed and instructor directed study.

  • It shall be designed in a skill-based format that focuses on teaching industry-relevant tasks.

  • The objectives shall be accomplished by organizing the learning material into a series of learning activity packets.

  • Included shall be 1 Learning Activity Packet containing at least 7 skills.

  • Topics covered shall include gear pump construction, installation, operation, performance, maintenance, troubleshooting, and repair.

  • Teacher’s guide materials shall be provided in a separately specified teacher’s guide.

  • It shall contain student data sheets, data sheet solutions, self-review answers, quizzes, quiz answers, student skill record sheets, and authentic assessment.

  • A quiz shall be provided for each packet.

  • A question shall be provided in each quiz for each cognitive objective taught.

  • All tasks listed in the packet shall be listed on personalized student record sheets.

  • The Instructor’s Package shall include directions for authentic skill assessment
