Magnetic Field Measurement Kit

Order Code: 19203328.4

Category: General Lab Equipment III

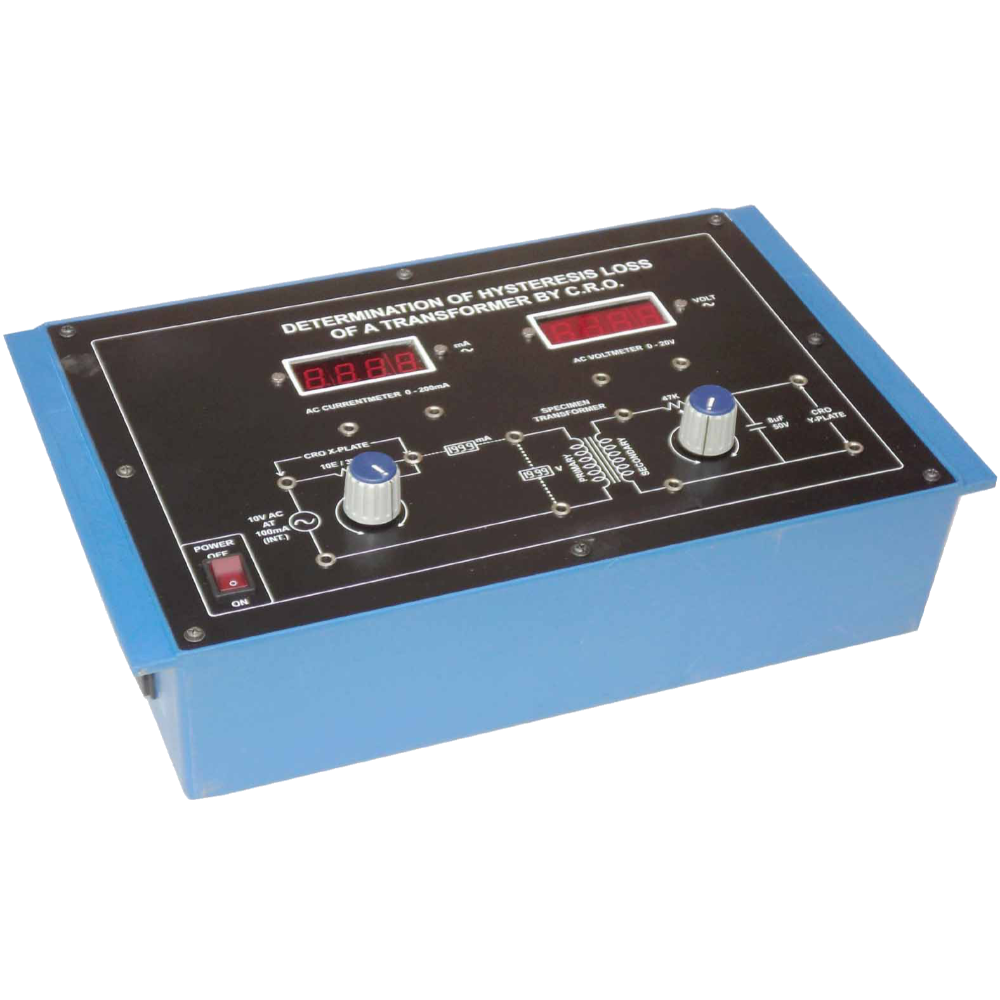

Magnetic Field measurement kit apparatus to obtain hysteresis curve for a given ferromagnetic material (thin rods) on a CRO. using solenoid and then to determine the related magnetic constant from it. The apparatus consists of transformer variable in...



SPECIFICATION

Magnetic Field measurement kit apparatus to obtain hysteresis curve for a given ferromagnetic material (thin rods) on a CRO. using solenoid and then to determine the related magnetic constant from it. The apparatus consists of transformer variable in steps, Resistance, capacitor network and a coil wound on farmer. Phase shifting in network is fed to Cathode ray oscilloscope to horizontal and vertical plates. The Hysteresis Curve produced is noticed on the screen of

Oscilloscope.

Technical Specifications :

  • Test point provided on front panel.
  • Complete circuit diagram printed on front panel.
  • One solenoid mounted on front panel.
  • Two level control potentiometer fitted on front panel.
  • Inbuilt AC Power Supply 3,6,9,12 V AC at 2A
  • Voltage selector switch fitted on front panel.
  • High quality front panel of 12” x 8” & mounted on cabinet
  • Symbol diagram printed on Front Panel & all important test Points are brought out on front panel
  • Power requirement : 230 VAC +10%, 50Hz.
  • Weight : 2.0Kg Approx.
  • Panel Size : 12”( L) x 8”(B)
  • Standard Accessories :
  • Power chord, Patch chords & Instruction manual.
