Order Code: 24257705.8
Category: General Lab Equipment V
Universal Base valid for the following equipment: a- Three Phase Synchronous Machine Specification: Machine must include:- 1. Smooth inductor. 2. Three-phase stator armature winding for operation either as an alternator or as a synchronous moto...
Universal Base valid for the following equipment:
a- Three Phase Synchronous Machine
Specification:
Machine must include:-
1. Smooth inductor.
2. Three-phase stator armature winding for operation either as an alternator or as a synchronous
motor
Technical features:
• Power: Alternator: 1-1.5 kVA
• Voltage: 220/380 V D/Y
• Current: 2.9-4.35/1.7-2.55 A D/Y
• Speed: 1000-1500-3000 rpm
• Excitation: 180-200 V / 0.4-0.5A
b- Induction Motor
Specification:
Induction motor with:-
1. Three-phase stator winding
2. Squirrel cage buried in the rotor.
Technical features:
• Power: 1-1.2 kW
• Voltage: 0-240 /0-415 V Δ/Y
• Current: 4.7-5.64 / 2.7-3.24 A, Δ/Y
• Speed: 1400-2800 rpm, 50 Hz
c- DC Motor
Specification:
It can be also used as a generator.
Technical features:
• Power: 1-1.5 kW
• Voltage: 200-300 V
• Speed: 2000-3000 rpm
• Excitation: 150-200 V / 0.25-0.5 A

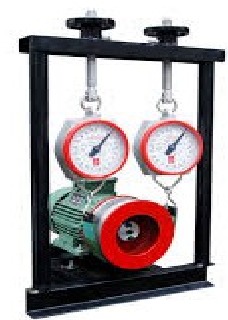

d- Eddy Current Brake
Specification:
The device must has:-
1. Smooth roll rotor
2. Salient pole stator.
3. Possibility of assembling a load cell.
Technical features:
• Maximum supply voltage: 250 Vdc
• Maximum speed: 4000 rpm
• Maximum power in S3: 1.4 kW
