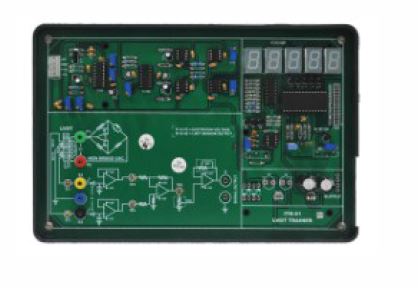

LVDT Trainner Kit

Order Code: 23246926.215

Category: General Lab Equipment III

Features Transducer LVDT Transducer with transparent enclosure. Displacement of ± 5mm Primary Excitation voltage of Sine wave 1Vp-p  Measurement Options On-board Digital Panel Meter provided Output available on 2mm...



SPECIFICATION

Features
Transducer

  • LVDT Transducer with transparent enclosure.
  • Displacement of ± 5mm
  • Primary Excitation voltage of Sine wave 1Vp-p

 Measurement Options

  • On-board Digital Panel Meter provided
  • Output available on 2mm Banana sockets for Monitoring
  • Screw Gauge for reference displacement reading

 Onboard Features

  • Provided with excitation voltage
  • Onboard Instrumentation Amplifier provided
  • Block Description Screen printed on glassy epoxy PCB.
  • Facility to Interface with PC (Optional)
  • Facility to Interface with 8085/86/51 kit(Optional).

 Interconnections

  • All interconnections are made using 2mm banana Patch cords.
  • Test points are provided to analyze signals at various points.
  • All ICS are mounted on IC Sockets.
  • Bare board Tested Glass Epoxy SMOBC PCB is used.
  • In-Built Power Supply of +5V/1.5A, ±12V/250mA with Power ON indication
  • Attractive ABS Plastic enclosures.
  • Set of 2mm Patch cords for interconnections
  • User's Manual with sample experimental programs
