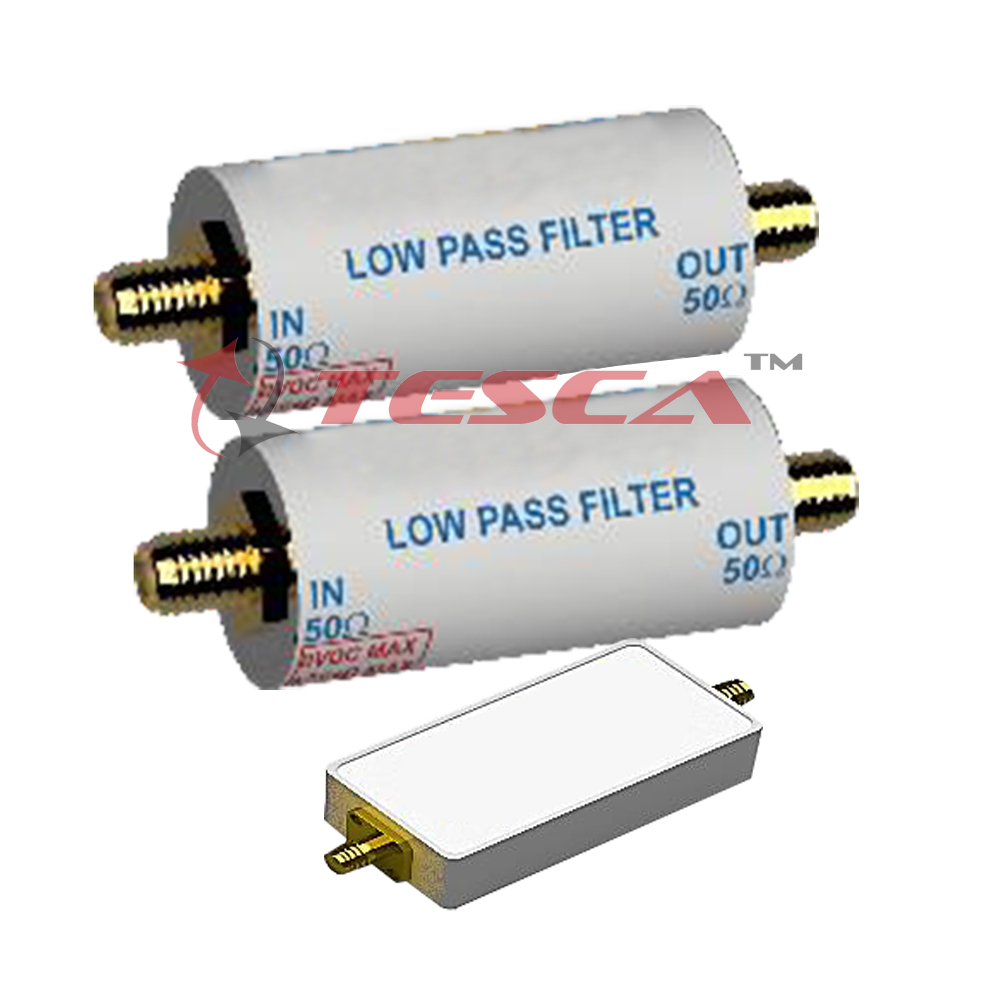

Lowpass Filter TFL4105-6805SLC
Order Code: TFL4105-6805SLC
Category: Low Pass Filter
Features: Rugged Shielded case Other standard and custom HPF models Wide selection of cuto? frequency Small & Rigid design Economical Description: The TFL4105-6805SLC is a High pass filter in a shielded package fabri...
SPECIFICATION
Features:
- Rugged Shielded case
- Other standard and custom HPF models
- Wide selection of cuto? frequency
- Small & Rigid design
- Economical
Description:
The TFL4105-6805SLC is a High pass filter in a shielded package fabricated using SMD LC technology. Covering DC-68 MHz bandwidth, these units o?er decent matching within the passband and high rejection in stopband.
Applications:
- Amateur Radio Equipment’s
- Test and measurement equipment
- Secure communications
- Walkie Talkie
- Radio Communications AM Applications Ham Radio
- Security system
- Broadcasting
- Navigation
Optional Accessories :
- Adapter Kit
- 50 ? Termination
- Directional coupler Kit
|
Electrical Speci?cations: |
|
|
Frequency Range |
DC - 68 MHz |
|
Power Capacity |
0.5 W |
|
Insertion Loss |
- 3 dB Max |
|
Return Loss |
-15 dB Min |
|
VSWR |
1.5:1 |
|
Input Connector |
SMA (M)/ SMA (F) |
|
Output Connector |
SMA (F) |
|
Operating Temperature |
0°C - 50°C |
|
Mechanical Speci?cations: |
|
|
Shape: |
Cuboidal/ Cylindrical shape |
|
Weight : |
Cuboidal :71 gm / Cylindrical :25 gm |
