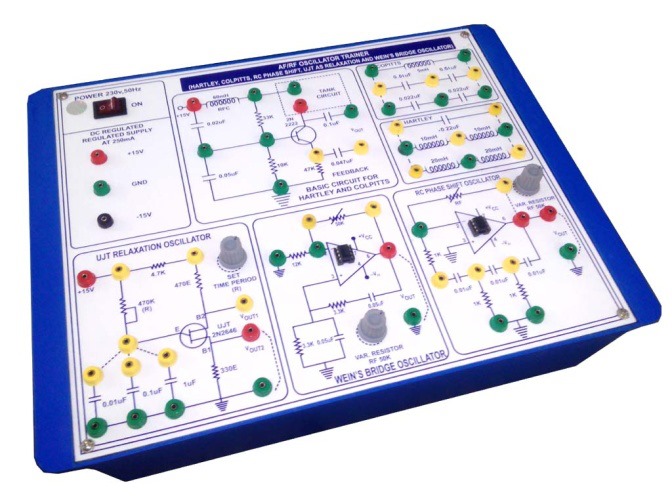

LOW FREQUENCY OSCILLATORS TRAINER
Order Code: 24257358.1.63
Category: General Lab Equipment V
The RC phase-shift transistor-based oscillators and the Wien bridge oscillators shall be afforded in the two transistors and operational amplifier configurations. Moreover, in the Wien bridge version the possibility of adjusting the amp...
SPECIFICATION
-
The RC phase-shift transistor-based oscillators and the Wien bridge oscillators shall be afforded in the two transistors and operational amplifier configurations.
-
Moreover, in the Wien bridge version the possibility of adjusting the amplitude and the frequency of the oscillation must be analyzed.
-
Power supply: ± 15 V, 750 mA
-
This board shall be housed in a module of standard rack sizes of 19 inches: the height of the board is of four rack units.
-
Performs the following exercises: Wien bridge oscillator
-
Wien bridge oscillator with AGC
-
Wien bridge oscillator with diode limiter Phase-shift oscillator
