Losses Due to Friction in Pipe Lines

Order Code: 14047

Category: Fluid Mechanics Lab

Introduction: The setup consists of 2 pipes of different diameters, which are connected in parallel. Pressure tapings are provided on each pipe to measure the pressure losses with the help of a Differential Manometer. Control valves are fitted on eac...



SPECIFICATION

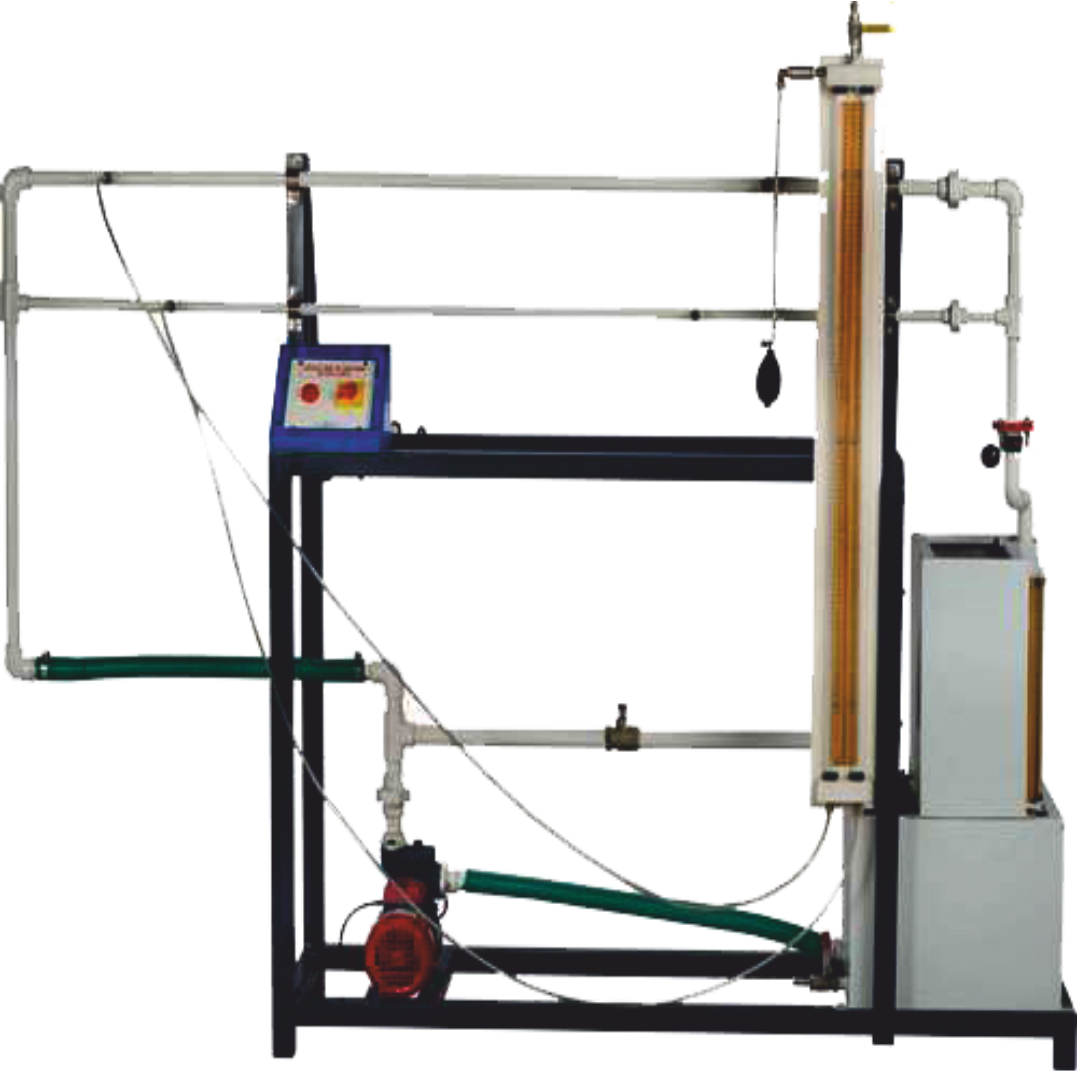

Introduction: The setup consists of 2 pipes of different diameters, which are connected in parallel. Pressure tapings are provided on each pipe to measure the pressure losses with the help of a Differential Manometer. Control valves are fitted on each pipe, which enables to use one pipe at a time for experiment. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump.




Specifications: Pipe Test Section: (i) Dia ½”, Length : 1m, Material G.I.(ii) Dia ¾”, Length: 1.25m, Material G.I.Water Circulation: FHP Pump, Crompton/godrej/G.E makes.Flow Measurement: Using Measuring Tank with Piezometer, Capacity 25 Ltrs.Sump Tank: Capacity 50 Ltrs.Stop Watch: Electronic.Control Panel Comprises of :Standard make On/Off Switch, Mains Indicator.
