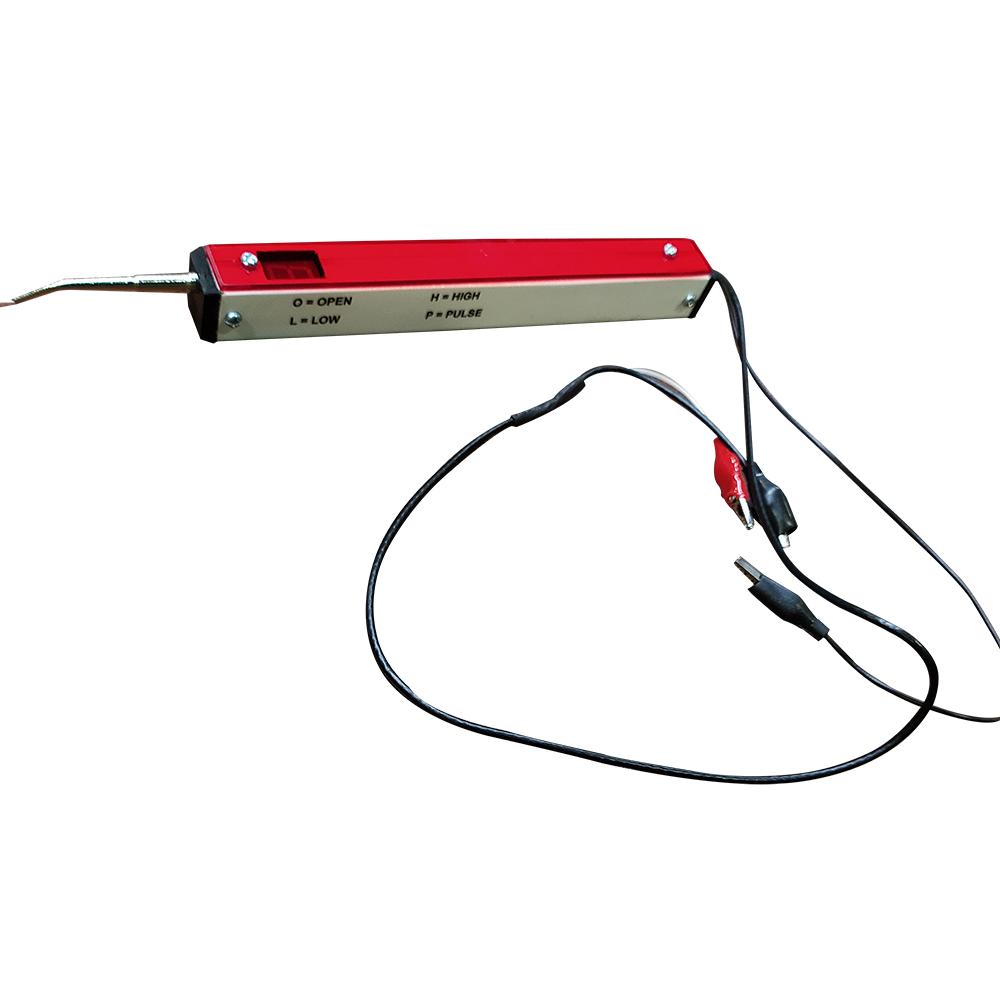

Logic Probe 50MHz TTL/CMOS & Pulser
Order Code: 16914
Category: Logic Probes
Specifications Sync input impedance............................1MW Pulse Rate............................................. 0.5 / 400Hz Pulse Width........................................... 10mS Output current........................................
SPECIFICATION
Specifications
Sync input impedance............................1MW
Pulse Rate............................................. 0.5 / 400Hz
Pulse Width........................................... 10mS
Output current....................................... 100mA sink / Source
Square Wave Output Current ............... 5mA sink / source
Power Supply Range..............................5 - 15V DC
Power Supply Protection...................... 20V DC (30 seconds max.)
Sync Input Protection......................... 120V DC (30 seconds max.)
Test Point Protection.......................... 35V DC (30 seconds max.)
Model 16914
Maximum Input Signal Frequency.............................50MHz
Input Impedance.........................................................120K
Operating supply range.............................................. 4V DC Minimum,
18V DC Maximum
TTL Logic "1" (Hi LED)............................. >3.0±0.25V
Logic "0" (Lo LED)............................. >0.75±0.25V
CMOS : Logic "1" (Hi LED)............................. >60%Vcc±5%
Logic "0" (Lo LED)............................. >15%Vcc±5%
Minimum Detectable Pulse width............................. 10 Nanoseconds
Maximum Signal Input Protection..............................±70V AC/DC
(for 15 seconds)
Power supply protection............................................ ±20V DC
Pulse indicator Flash Time........................................
