Logarithmic Amplifiers Design & Test (Using IC-741 Op-Amp)

Order Code: 36324

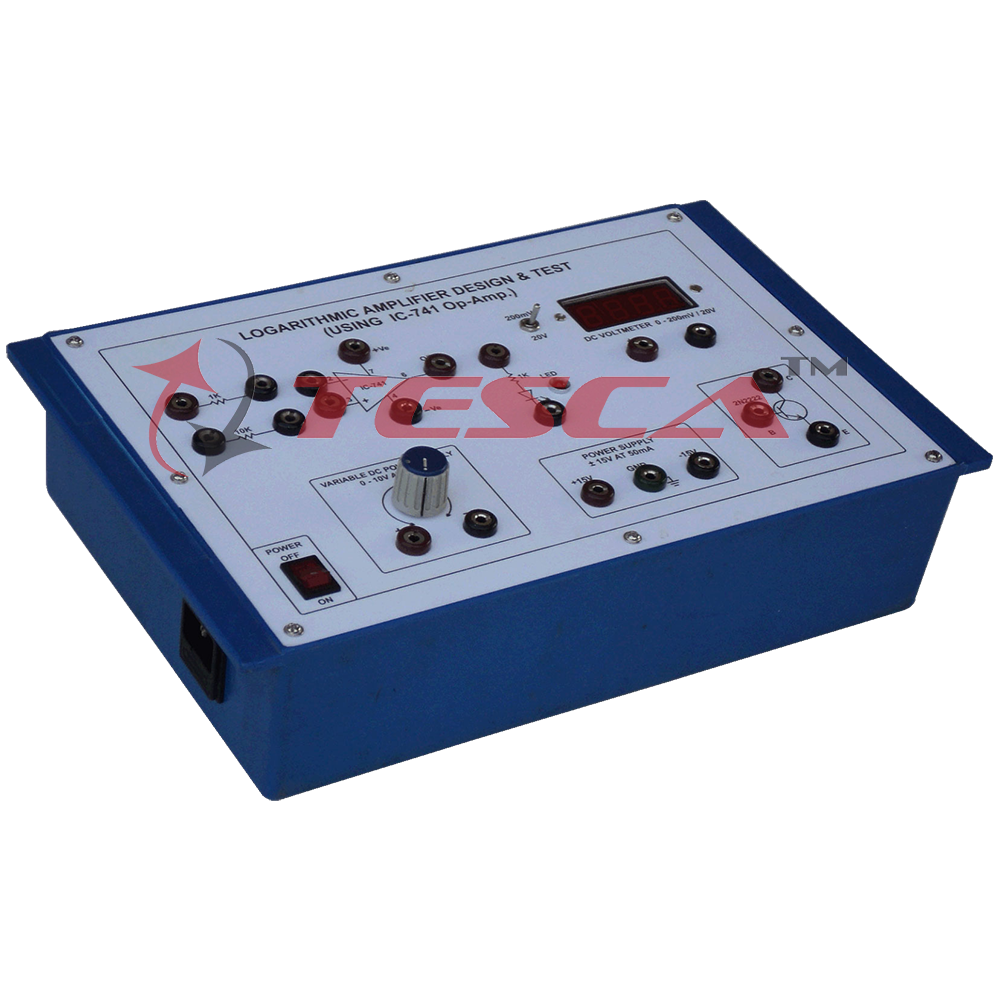

36324 Experimental Training Board has been designed specifically to study the Logarithmic Amplifiers Design & Test (using-741 Op-Amp.) The board is absolutely self contained and requires no other apparatus. Practical experience on this bo...

SPECIFICATION

36324 Experimental Training Board has been designed specifically to study the Logarithmic Amplifiers Design & Test (using-741 Op-Amp.)

The board is absolutely self contained and requires no other apparatus.

Practical experience on this board carries great educative value for Science and Engineering Students.

Object :

To Design operational amplifier based Logarithmic Amplifier.

Features
The board consists of the following built-in parts:

0-10V D.C. at 50mA, continuously variable Power Supply
± 15V DC at 50mA, IC Regulated power supply
Digital Voltmeter DC 3½ Digit Having Dual range of 200mV / 20V.
Adequate no. of other electronic components
Mains ON/OFF switch, Fuse and Jewel light.
The unit is operative on 230V AC ±10% at 50Hz.
Adequate no. of patch cords 4mm length 50cm.
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections /observation of waveforms.
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
Weight : 2.600 Kg. (Approx.)
Dimension : W 340 x H125 x D 210

Other Apparatus Required:

Dual trace CRO 20MHz
