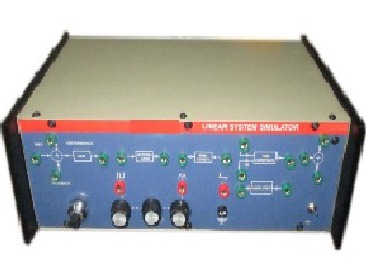

Linear System Simulator
Order Code: 24258121.1
Category: General Lab Equipment V
SCOPE OF LEARNING: Type Zero Control system Type 1 control system Type 2 control system Bode plot trainer TECHNICAL SPECIFICATIONS: Signal Sources: Square wave : 20-80 Hz, 0-2 Vpp continuously variab...
SPECIFICATION
SCOPE OF LEARNING:
-
Type Zero Control system
-
Type 1 control system
-
Type 2 control system
-
Bode plot trainer
TECHNICAL SPECIFICATIONS:
Signal Sources:
-
Square wave : 20-80 Hz, 0-2 Vpp continuously variable
-
Triangular wave : Similar to square wave both in frequency and amplitude
-
Integrated triangle wave fixed amplitude
Power Supply:
-
IC regulation in controller circuit power supplies
-
Operated on Mains power 230V, 50Hz +10%
Features:
-
Study of simulated linear systems
-
Simulated blocks configurable as first, second and third order systems
-
Disturbance adding facility at input and output
SALIENT FEATURES:
- Front panel built with high class insulated Printed Circuit on Metal Board sheet with well printed circuits and symbols.Instruction manual.
- Connections are brought out through 4mm Sockets.
- Patch Cords 4mm.
- The trainer is housed in Metal cabinet.
- Size of the trainer set 18”x7”
