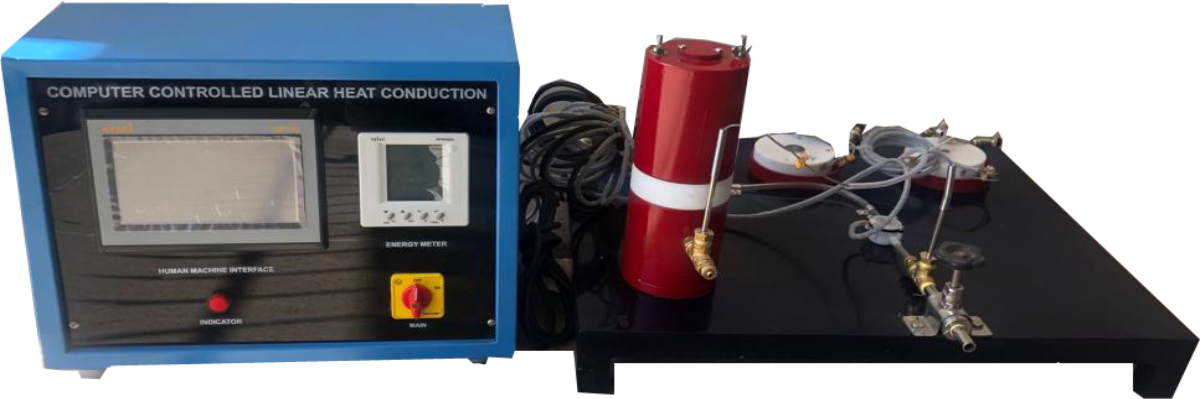

Linear Heat Conduction Apparatus

Order Code: 14034

Category: Heat Transfer Lab

Introduction: The accessory comprises a heating section and a cooling section, which is clamped together or clamped with interchangeable intermediate sections between them, as required. The temperature difference created by the application of heat to...



SPECIFICATION

Introduction: The accessory comprises a heating section and a cooling section, which is clamped together or clamped with interchangeable intermediate sections between them, as required. The temperature difference created by the application of heat to one end of the resulting wall and cooling at the other end results in the flow of heat linearly through the wall by conduction.



Specifications: Power Requirement: 230 Volt, 10%, 50 Hz.Heating section: Brass rod fitted with rod type heater inside, Rod diameter:28-32mm, Length 80-100mm approx.Heater: Nichrome wire type approx. 100W.Cooling section: Made of aluminum/brass rod. Inlet and outlet points for water.Intermediate/test section: Three different type of sections

a) Brass rod: Diameter: 28-32mm, Length 40-50mm
b) Brass rod: Diameter: 20mm, Length 40-50mm
c) Aluminum Rod: Diameter 28-32mm, Length 40-50mm
11 RTD type thermocouples. (3 on heating section, 3 on cooling section and 3 on intermediate section, 1 each for water inlet and water outlet)Quick release coupling for cooling water tube connection.Heater is voltage or PID controlled allowing for the temperature set-point to be achieved rapidly and maintained within 0.1°C.
