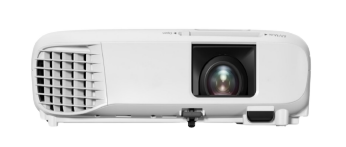

Light Crystal Display (LCD)-Projector

Order Code: 22235575.4.22

Category: General Lab Equipment I

TECHNOLOGY Projection System 3LCD Technology, RGB liquid crystal shutter LCD Panel 0.59 inch with C2 Fine IMAGE Color Light Output 3,800 Lumen- 2,600 Lumen (economy) White Light Output 3,800 Lumen In accordance with ISO 21118:201...



SPECIFICATION

TECHNOLOGY

  • Projection System 3LCD Technology, RGB liquid crystal shutter
  • LCD Panel 0.59 inch with C2 Fine


  • Color Light Output 3,800 Lumen- 2,600 Lumen (economy)
  • White Light Output 3,800 Lumen In accordance with ISO 21118:2013
  • Resolution WXGA, 1280 x 800, 16:10
  • Contrast Ratio 16,000 : 1
  • Lamp UHE, 210 W, 8,000 h durability, 17,000 h durability (economy mode)
  • Keystone Correction Auto vertical: ± 30 °, Manual horizontal ± 30 °
  • Colour Reproduction Upto 1.07 billion colours

OPTICAL

  1. Throw Ratio 1.30 - 1.56:1
  2. Zoom Manual, Factor: 1 - 1.2
  3. Screen Size 33 inches - 320 inches
  4. Projection Lens F Number 1.49 - 1.72
  5. Projection Lens Focal Length 16.9 mm - 20.28 mm
  6. Offset 10 : 1

CONNECTIVITY

  • USB Display Function 3 in 1: Image / Mouse / Sound
  • Interfaces USB 2.0 Type A, USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T),
  • Wireless LAN a/n (5GHz) (optional), VGA in (2x), VGA out, HDMI in (2x), Composite in, Stereo
  • mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in
  • Epson iProjection App Ad-Hoc / Infrastructure

ADVANCED FEATURES

  • Security Kensington lock, Security cable hole, Wireless LAN unit lock
  • Other features AV Mute Slide, Automatic keystone correction, Built-in speaker, Digital zoom, Direct Power
  • on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone
  • correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-ScreenFunction, iProjecton set-up by QR code
  • Video Color Modes Blackboard, Dynamic, Presentation, sRGB, Theatre

GENERAL

  • Power consumption 327 Watt, 225 Watt (economy)
