Lamp Dimmer

Order Code: 46910

Category: Electrical Machine Lab

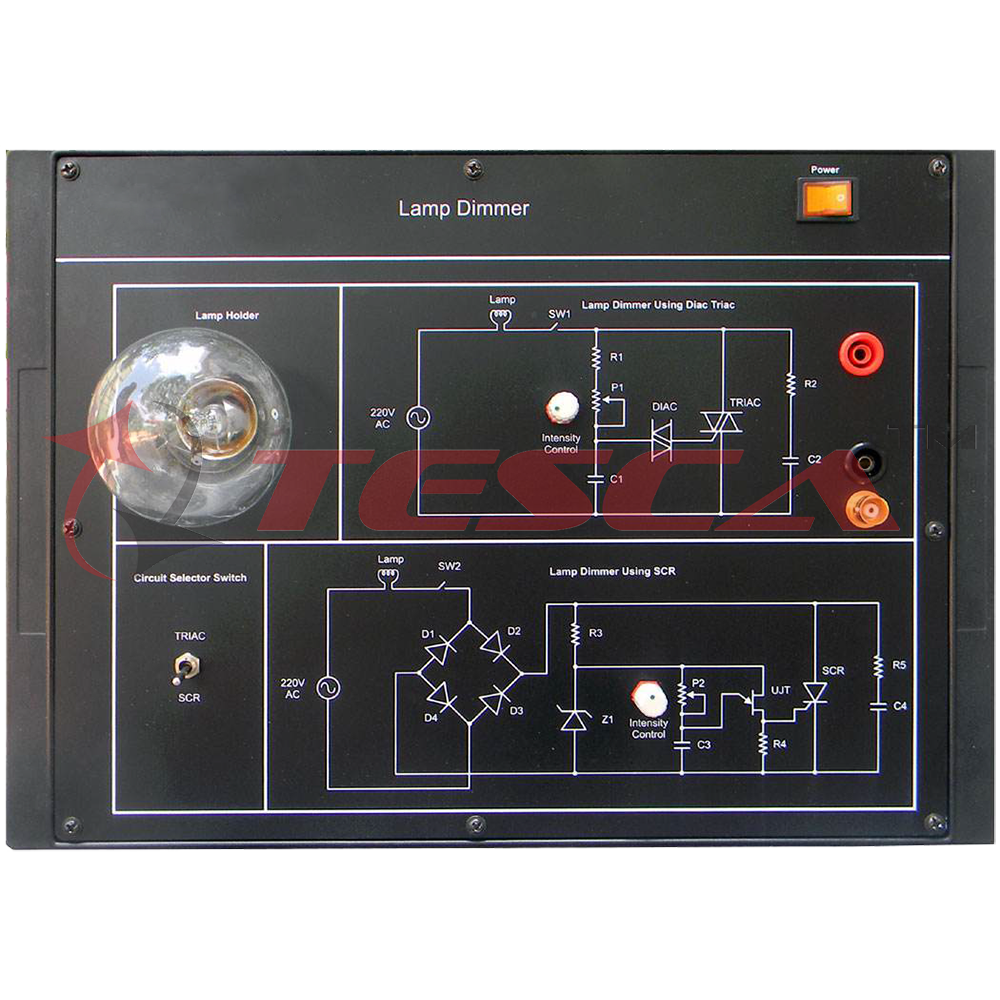

46910 is a comprehensive learning platform which is very useful for Students to understand the application of Thyristor in intensity control. Two firing methods are provided with this platform internal power attenuattor is included for observation of...



SPECIFICATION

46910 is a comprehensive learning platform which is very useful for Students to understand the application of Thyristor in intensity control. Two firing methods are provided with this platform internal power attenuattor is included for observation of high voltage signals on the Oscilloscope. This platform is provided with internal AC/DC power supplies & exhaustive learning material.
Features

  1. Built in Power Supply
  2. Easy to operate and understand
  3. On board two firing circuits
  4. Gradual firing angle control up to 180 degree
  5. In-built Power Isolation Circuit
  6. Switch for selection of firing circuit


Object

  1. Study lamp dimmer using DIAC & TRIAC firing scheme
  2.  Study lamp dimmer using UJT firing scheme


Technical Specifications

  • On board firing circuits:
  • DIAC TRIAC firing circuit
  • UJT firing circuit
  • SCR & TRIAC TRIAC BT136 : 1 SCRS TYN 616, 600V/16A and
  • Load : Lamp 100W
  • Mains Supply (mains) : 220V/110V, 50 Hz/60 Hz
  • Dimensions (mm) : W 420 x D 255 x H 100
  • Weight : 1 Kg. (approximately)
  • Operating Conditions : 0-400C, 85% RH
  • Included Accessories : Bulb milky white (100W)-1 no. Mains cord-1 no.


Optional

  1. Simtel Power Electronics Software
