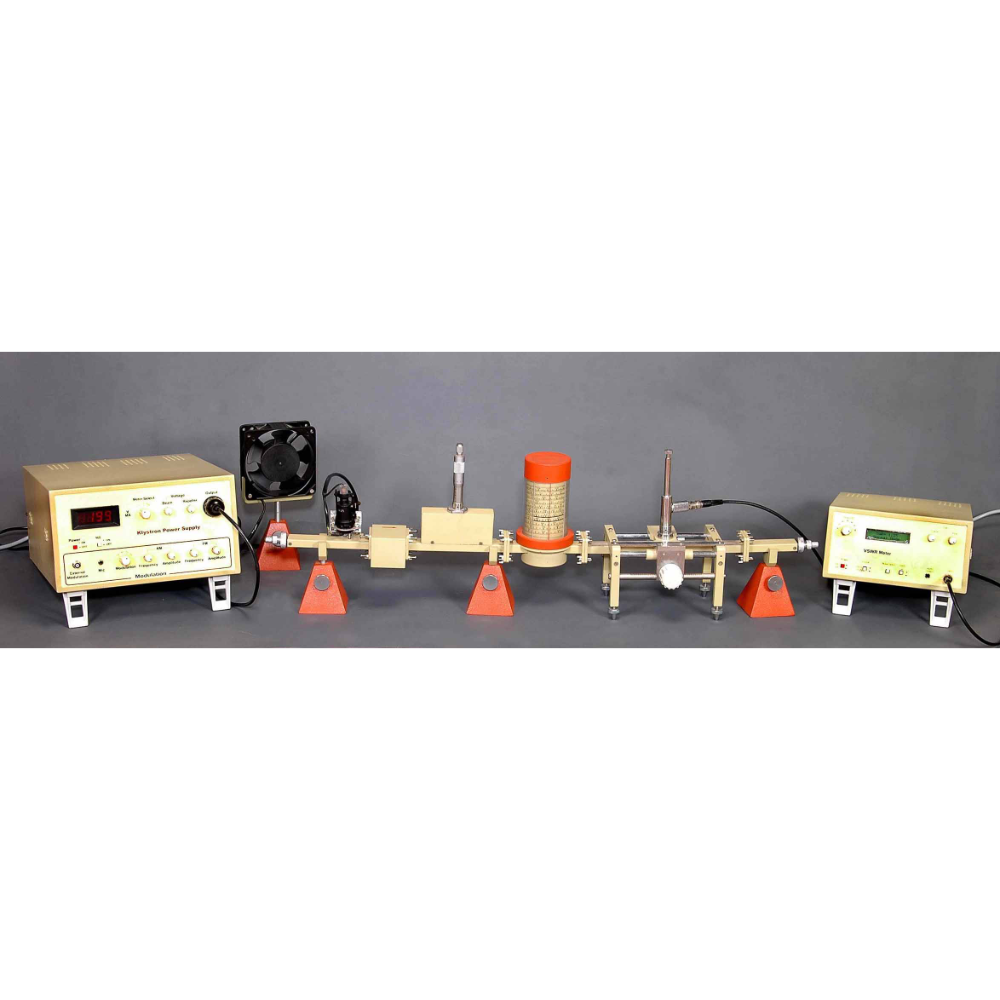

Klystron Based Microwave Test Bench

Order Code: 23246869.45

Category: General Lab Equipment II

The Microwave Test Benches are precision made microwave systems, which use standard type rectangular wave-guide components to illustrate the essential elements of this field for study. The equipment consist of :  A selection of wave-g...



SPECIFICATION

The Microwave Test Benches are precision made microwave systems, which use standard type rectangular wave-guide components to illustrate the essential elements of this field for study.


The equipment consist of :

  •  A selection of wave-guide components
  •  The power supply for the microwave source
  •  A detector
  •  A meter, which monitors the detector output
  •  Wall Chart
  •  Microwave Chart


These Training Benches are completely self-contained & provide the means to allow students to carry out practical work at extremely low cost. A comprehensive manual containing extensive microwave theory and a progressive series of assignments is supplied with the Trainer. Components

Experiments:

  •  Study of Reflex Klystron
  •  Frequency, Guide Wavelength Measurement
  •  SWR, Reflection Co-efficient Measurement
  •  Impedance Measurement

Instruments:
SKPS ----------------------------------------------------------------1
VSWR Meter -------------------------------------------------------1


Components:
Cooling Fan---------------------------------------------------------1
Detector Mount ----------------------------------------------------1
Fixed Short ---------------------------------------------------------1
D.R.F. Meter--------------------------------------------------------1
Isolator --------------------------------------------------------------1
Klystron Mount ----------------------------------------------------1
Matched Termination----------------------------------------------1
Movable Short------------------------------------------------------1
S S Tuner------------------------------------------------------------1
Slotted Section -----------------------------------------------------1
Tunable Probe ------------------------------------------------------1
Variable Attenuator 20 dB ----------------------------------------1
Wave Guide Stand -------------------------------------------------3


Accessories:
Cable BNC - BNC ------------------------------------------------1
Mains Cord ---------------------------------------------------------2
Op. Manual ---------------------------------------------------------1
