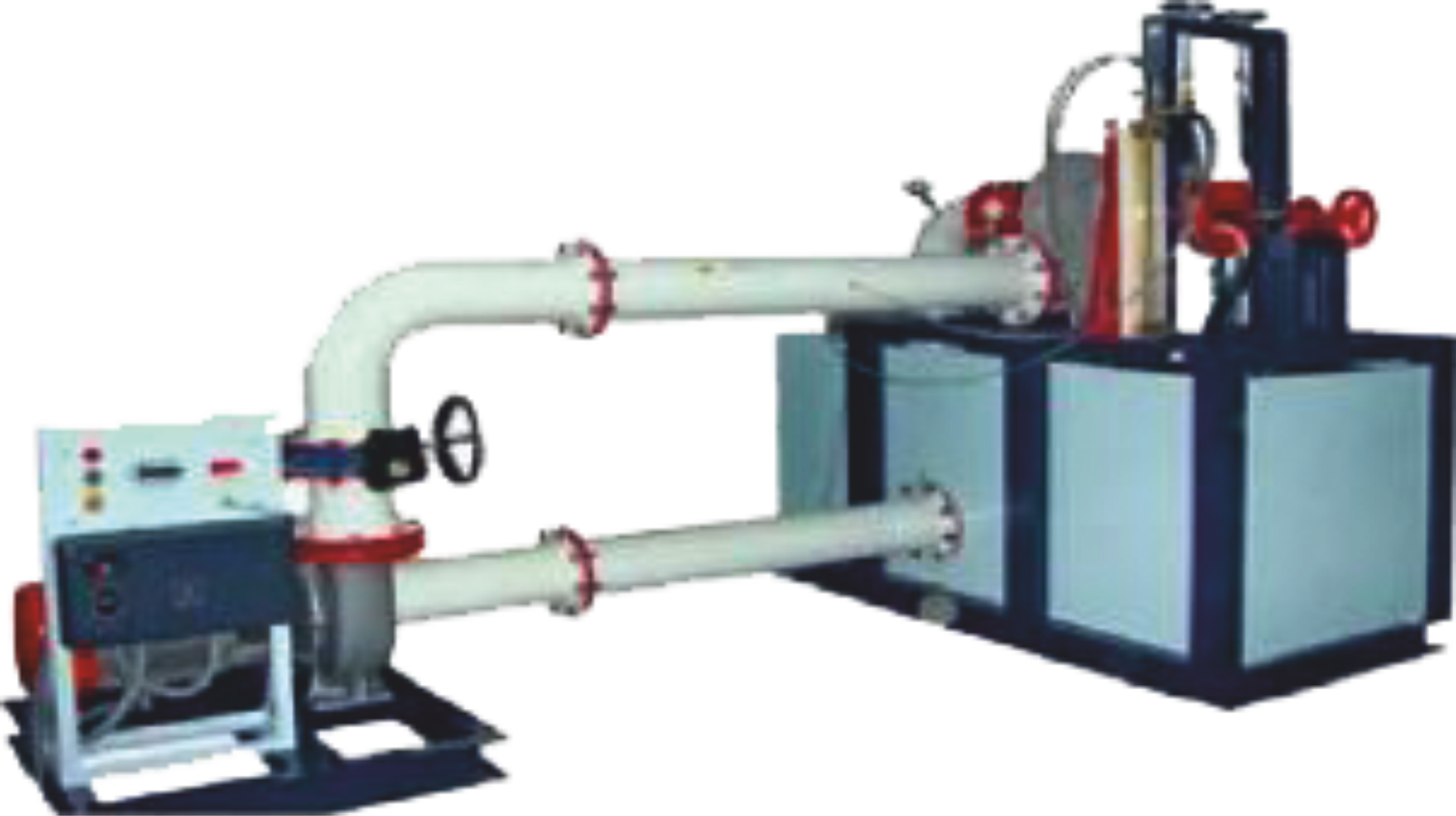

Kaplan Turbine Test Rig (1Kw-3Kw)

Order Code: 14099

Category: Fluid Machinery Lab

Introduction: Kaplan Turbine is an axial flow reaction turbine named in honour of Dr. B. Kaplan, a German Engineer. This turbine is suitable for low head. The power produced by a turbine is proportional to QH. As the head (H) Decreases the discharge ...



SPECIFICATION

Introduction: Kaplan Turbine is an axial flow reaction turbine named in honour of Dr. B. Kaplan, a German Engineer. This turbine is suitable for low head. The power produced by a turbine is proportional to QH. As the head (H) Decreases the discharge (Q) must increase to produce the same power. The present set-up consists of a scroll casing housing a runner. Water enters the turbine through the stationary guide vanes and passes through the runner axially.





Specifications: Output Power : 1kw-3kw Discharge : 1000 LPM Supply Head : 5-8 M Normal Speed : 2000 RPM Dynamometer : Rope Brake type.Water Circulation : Centrifugal Pump, CRI/Standard Make, Capacity 5HP-15 HP, 3 Phase.Discharge Measurement : Venturimeter Sump Tank : Capacity 200-400 Ltrs. Pressure Measurement : Pressure Gauge & Vacuum Gauge Piping & Fittings : Pipes & fittings with flow control valves of suitable size with the Apparatus Tanks will be made of Stainless Steel.The whole set-up is well designed and arranged in a good quality painted structure.
