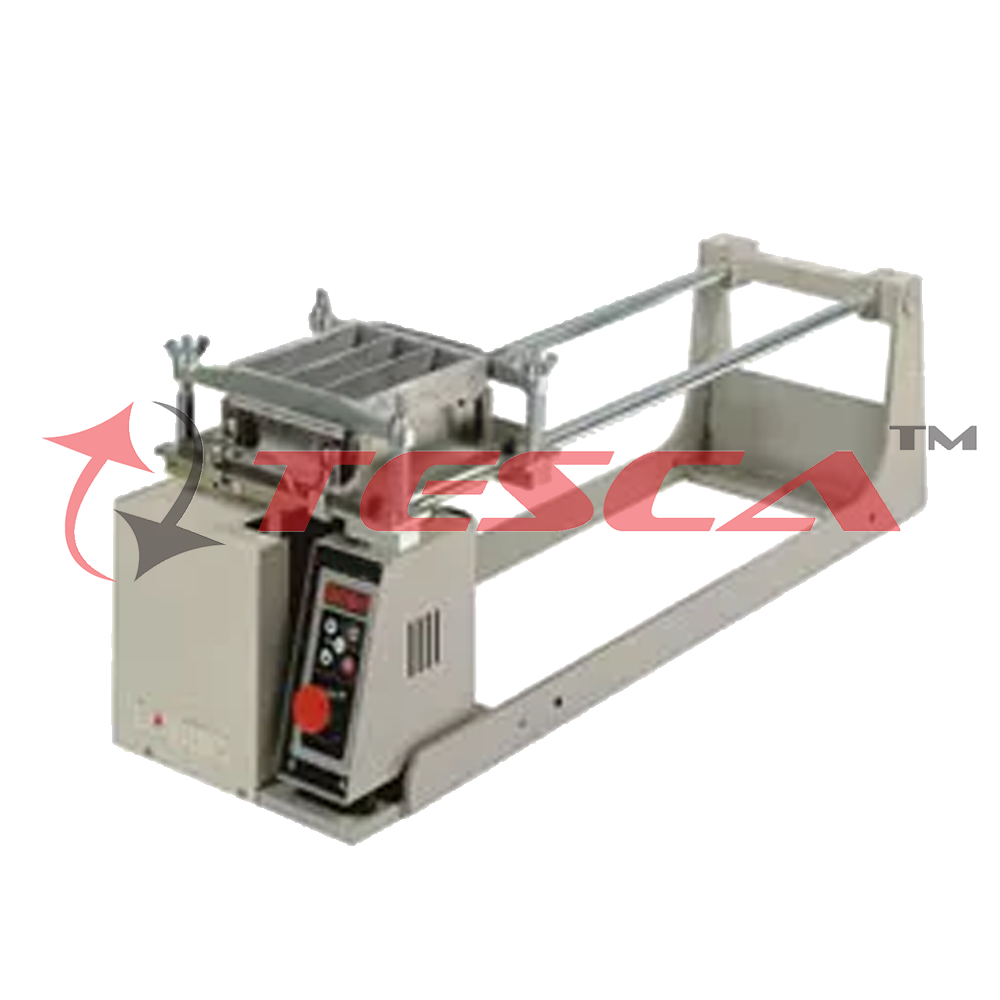

Jolting Apparatus- IS 10078

Order Code: MT185

Category: Cement, Lime Plaster & Mortar Testing

Applications: Used to compact rectangular 40 x 40 x 160mm of port land and pozzolana cement mortar prism specimens for determining the transverse strength. Salient Features: Rapid mould lock and release system Rigid structure assuring sta...



SPECIFICATION

Applications:
Used to compact rectangular 40 x 40 x 160mm of port land and pozzolana cement mortar prism specimens for determining the transverse strength.

Salient Features:

  • Rapid mould lock and release system
  • Rigid structure assuring stability and no distortion
  • Easy to operate
  • Aesthetic outer appearance
  • Powder coated body

Construction Details:

  • The jolting apparatus consists of rectangular table rigidly connected by two support arms to a spindle at a horizontal distance of 800 mm from the centre of the table.
  • There is a projecting lug with a plane face on the lower face of the table beneath which is a stop with a rounded upper surface.
  • The table can be raised and allowed to fall freely by a cam which is connected to a motor. The cam rotates at a rate of 60 rev/min.
  • A stroke counter fitted with micro?switch is provided which stops the machine after 60 jolts.
  • Locating pins are provided for mounting the moulds compartments on the table.
  • The mould surrounded by the hopper can be clamped rigidly to the table.

Technical specification

Total weight of the vibrating part

20 kg

Vibration frequency

60 times/60 seconds

Fall distance

15 ± 0.3 mm

Motor Speed

60 Rev/Min

Distance from platform center to center of arm extension rod

800mm

Overall Dimensions

1070 X 410 X 510 (L X W X D) mm

Net Weight

40 kg

Operation

230 Volts, 50 Hz, Single Phase, AC Supply
