Ionselective

Order Code: 23246397.7

Category: General Lab Equipment II

Specifications - Glass pH electrode, ATC probe, electrode holder, pH Buffers (4, 7, and 10), BNC short plug, and power cord with US plug. Key Features Supports one, two, or three point pH calibration Up to three decimal place resolution fo...



SPECIFICATION

Specifications -
Glass pH electrode, ATC probe, electrode holder, pH Buffers (4, 7, and 10), BNC short plug,
and power cord with US plug.
Key Features

  • Supports one, two, or three point pH calibration
  • Up to three decimal place resolution for accurate readings
  • Kit includes a pH electrode, ATC probe, and pH buffers
  • Stores up to 32 readings
  • 120 VAC operation
  • Comes with US plug

More About This Item

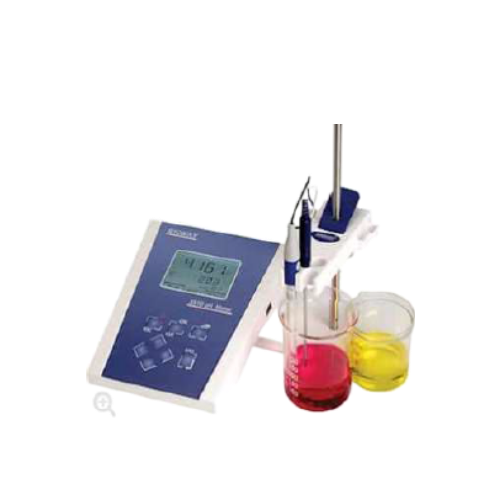

Benchtop pH meters feature up to three decimal place resolution, support up to three pH calibration points, and offer manual and automatic buffer recognition for DIN, JIS, and NIST buffers. A large LCD displays status and results of pH and temperature readings. Easily export data to a computer or printer via an RS-232 or an analog interface. Advanced digital pH meters help ensure compliance with Good Laboratory Practice (GLP) guidelines with calibration reminder interval, alarm output, and security code setup features. Both standard and advanced pH meters are available as meter only or as a kit that includes a pH electrode, ATC probe, and buffers.

Technical Specifications

  • Meter Type - Benchtop
  • Display type - Backlit custom LCD
  • Connections – BNC
  • Min pH (pH)- 2
  • Max pH (pH)- 19.999pH
  • Resolution - 0.001, 0.01, 0.1pH
  • Accuracy±0.003
  • Buffer Recognition - DIN, NIST, JIS, and custom
  • Calibration User selectable 1, 2 or 3 point
  • Min mV (mV) -1999.9
  • Max mV (mV)1999.9mV
  • Resolution - 0.1, 1mV
  • Accuracy ±0.2Min
  • Temperature (° C) -10
  • Max Temperature (° C) 105
  • Min Temperature (° F)14
  • Max Temperature (° F)221
  • Temperature Resolution1°F (0.1°C)
  • Temperature Accuracy±1°F (±0.5°C)
  • Temperature compensation Automatic or manual from 32 to 212?F (0 to 100?C)
  • Interface - Analog and RS-232
  • Output Analog and RS-232
  • Data Logging (points) 32 data sets
  • Memory Size 32
  • Power (VAC)120
  • Length (cm)25
  • Width (cm)21
  • Height (cm)5.5
  • Width (in)8 ¼
  • Length (in)9 7/8
  • Height (in)2 3/16
  • Probe Included - pH electrode and ATC probe
  • Description - Standard Digital pH Meter Kit; 120 VAC
