1. Training bench – 1 Nos
2. Oscilloscope– 1 Nos
3. DC power supply– 1 Nos
4. Function Generator– 1 Nos
5.RF Generator– 1 Nos
6.Digital multimeter– 1 Nos
7. AC power supply: 1 Nos
8. Soldering station: 1 Nos
9. AC outlet – 1 Nos
10. Test leads holder– 1 Nos

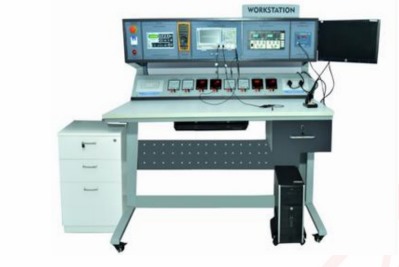

1. Training bench

• Height: 815mm
• Width: 1570mm
• Depth: 900mm
• 4 adjustable stands or 4 wheels

2. Oscilloscope:
Technical Specification

• CRT: 6-inch rectangular screen with internal gratitude, 8x10div (1div = 1cm)
• Display mode: CH1. CH2. ADD, ALT, CHOP
• Deflection factor: 5mV/div to 5V/div ±3%. 1mV/div to 1V/div ± 5%(X5).10 steps
• Rise time: ≤17.2ns
• Max. Input voltage: 250V (DC+AC peak) ≤1KHz
• Input coupling: AC. DC. GND
• Polarity selection: + or - (CH2 only)
• Display mode: 1,10, X-Y
• Time Base: 0.2us/div to 0.2s/div,9 ranges
• Sweep magnification: X10
• Accuracy: ±3%
• Trigger mode: NORM, AUTO, TV-V, TV-H
• Trigger source: CH1.CH2. VERT. LINE. EXT
• Sensitivity and Frequency: 20Hz-30MHz(VERT)
• AUTO. NORM: 0.5div(INT), 0.5Vp-p(EXT)
• TV-V, TV-H: At least 1 div or 1 Vp-p
• Input impedance: 1MΩ
• X-Y Phase difference : ≤3°,DC-50kHz
• Calibration waveform: Frequency: 1kHz ±20%, voltage :0.5V ±10%
• Power supply: 220V/110V ± 10%; 50/60HZ
• Dimensions: Approx. 310(W) X 130(H) X 370(D)mm
• Weight: About 8.5KG

3. DC power supply
Technical specifications

1. Output voltage: 0-30v
2. Output current: 0- 5ARipple & Noise: CV 1mVrms, CC 3mArms
3. Display Accuracy : (0.5% Rdg +2 digits)
4. Power source: 220-240v AC, 50Hz
5. Dimensions (WxHxD) :Min 130x 165x305 mm
6. Weight: Min 6Kg

4. Function Generator:
Technical Specification:

• Frequency range: 0.3-3MHz
• Output waveform: Sine, Triangle, Square, positive or negative pulse wave of,
• Positive or negative ramp.
• Output Impedance: 50Ω±10
• Amplitude modulation: Not smaller than 20Vp-p(open)
• DC offset: 0~±10V continuous adjustable
• Symmetry Range: 80:10~10:80
• Rising Edge of square wave: 100ns or 50ns
• Sine Wave Characteristic
• Distortion: 10Hz-100KHz less than 1
• Frequency Response: 0.1Hz to 100KHz not larger than ± 0.5dB, 100KHz to
• 3MHz not larger than ± 1dB,100KHz to 6MHz not larger than ± 2dB, 100KHz to 10MHz not larger than ±3dB, 100KHz to 15MHz not larger than ± 3.5dB
• TTL output Level: TTL the low level of an impulse wave is not larger than 0.4v, high level is not smaller than 2.4v
• Rise time: Not larger than 30 ns
• Modulating frequency: 400Hz internal, 01MHz external
• Modulation Depth: 0-85%
• Deviation: 0-10%
• Modulating frequency: 400Hz internal, 01MHz external
• Distortion of modulation frequency: ≤1.5% (fc=500KHz fm=1kHz,10%)
• Power output (Model with W)
• Amplitude: Not smaller than 20Vp-p Power
• Sweep mode: Liner; logarithmic
• Sweep speed:10ms~5s
• Sweep ratio: ≥ 1000:1
• Output amplitude: 7Vp-p
• Output impedance: 600Ω
• VCF input
• Output voltage: -5V~0V ± 10%
• Max ratio of voltage control: 1000:1
• Input signal: DC-1KHz

Frequency Meter:

• Measuring range :1Hz-20MHz
• input impedance: Not smaller than 1MΩ / 20pF
• Sensitivity: 10mVrms
• Max input: 150V(AC+DC)(attenuator included)
• Input attenuation: 20db
• Measuring error: Not larger than 0.003% ± 1digit
• Power Supply: 220V/110V±10%, 50/60HZ
• Dimension: Approx.310X230X90mm
• Weight: About 4 kg

5. RF Generator
Technical Specification:

• Frequency range A:100KHz-300KHz/ B: 300KHz-1MHz/ C: 1MHz-3.2MHz/D: 3MHz-10MHz/E: 10MHz-35MHz/ F: 32MHz-150MHz
• Frequency range: 100KHz-150MHz (3rd harmonic wave up to 450MHz)
• Frequency accuracy: 13%
• Output waveform: RF/AM signal waveform
• Output impedance: 600 ohm
• Radio frequency output: Over 100mVrms output
• Level control: 1mV-100mV
• Internal modulation : 1Khz ± 2%>2Vrm outputExternal modulation: 50Hz-20KHz for any setting
• Normal operator temperature/ humidity: 10°C to 35°C/ with 85%RH
• Power supply: 220V / 110V +/-10%; 50/60Hz

6. Digital Multi Meter
Feature:

• Over voltage/current audible alarm
• High voltage warning
• Auto power off (can be disabled)
• Low power consumption
• Fast and accurate capacitance measurement
• 2m drop proof

Technical Specifications:

• DC voltage (V): 600mV/6000mV/60V/600V, ±(0.5%?3)
• AC voltage (V): 600V, ±(1.2%+3)
• DC current (A): 600uA/60mA/600mA/10A, ±(1%+2)
• AC DC current (A) : 10A
• Resistance (Ω): 600Ω/6000Ω/60kΩ/600kΩ/60MΩ, ±(0.8%+2)
• Capacitance (F): 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF,±(4%+5)
• Display count: 6000
• Range selection: Manual
• Diode: yes
• Continuity buzzer: Yes
• NCV: Yes
• LCD backlight: yes
• Test probe holder: yes
• Data hold: yes
• Low battery indication: yes
• Overload indication: yes
• Power: 1.5V battery (R03) x 2
• Display: Min 56.8mm x 36.1mm
• Net weight: About 255g (with batteries)
• Dimension: Approx.155mm x 76.5mm x 49mm

7. AC Power supply:

• Input voltage: 220V AC ± 10%, 50 Hz
• Output voltage: 0~30V
• Output Current: 0-5 A DC
• Source Effect: CV ≤0.01% ± 3mV, CC ≤0.5% ± 3mA
• Load Effect: CV ≤0.05% ± 3mV, CC ≤0.05% ± 10mA
• Ripple & Noise: ≤ 5mVrms CC ≤ 20mA
• Display: Double 4 light LED display
• Protection: Current limit protection, short circuit protection, overload protection
• and heat protection
• Working Temperature : 0±400 C , RH <90%
• Voltage Display precision: LED ±1 % + 5 digit
• Dimension: Approx.24X13X15 cm
• Weight: Less than 2 kg

8. Soldering station:
Feature:

• Adjustable temperature control with lock/set screw
• Temperature range 392°-896°F (200°- 480°C)
• Maintains idle temperature within 1.8°F (1°C)
• Ceramic heating element and sensor insures rapid heat-up temperature (30
• seconds) and Lightning-fast thermal recovery
• Celsius or Fahrenheit temperature setting
• Temperature is adjusted by simply turning the dial
• Slender iron handles are insulated and ergonomic-designed for ease and comfort
• Accommodates large, medium, or small irons
• A wide selection of tips available for soldering SMD and through-hole connections

Technical Specification:

• Consumption: 60W
• Output Voltage: 24V AC
• Temperature : 200°C - 480°C (392°F - 896°F)
• Temperature Stability : ±1.0°C (1.8°F)
• Dimensions : Approx.120(W) x 93(H) x 170(D) mm
• Weight: About 2.9 lbs
