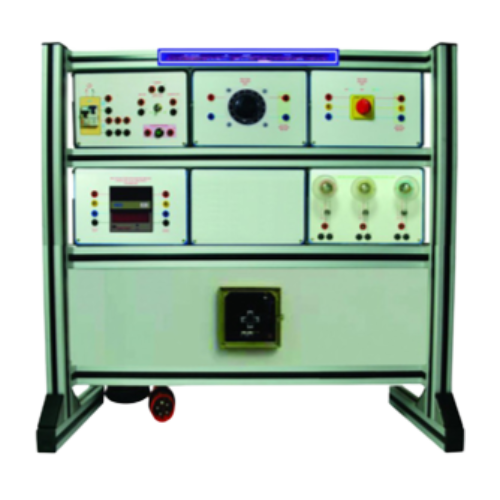

Injection Junction Meet ANSI and IEC

Order Code: 22236220.1.4

Category: General Lab Equipment I

Features: 1 Phase Ac Input Supply Panel Variable Voltage & Current Injector Panel Over Current & Elapsed Time Measurement Panel Over Current Relay Panel Protection Relay Type (Numerical) Specifications: 1 Phase AC&n...



SPECIFICATION

Features:

  • 1 Phase Ac Input Supply Panel
  • Variable Voltage & Current Injector Panel
  • Over Current & Elapsed Time Measurement Panel
  • Over Current Relay Panel
  • Protection Relay Type (Numerical)


Specifications:

  • 1 Phase AC Input Supply Panel
    • 1 Phase MCBs of 4A/1.6A – 2 Nos.
    • Bulb Load.
  • Variable Voltage & Current Injector Panel
    • Consist Of 1 Phase Dimmer 230VAC/1A
    • Short Circuit Transformer With Primary
    • 230VAC/1A, Secondary 0-2-8V/12A Taps.
  • Over Current & Elapsed Time Measurement Panel
    • Consists Of AC Ammeter Of 20 A
    • Elapsed Time Counter Range 999.001 Sec, Resolution 1 msec.
  • Over Current Relay Panel
    • All The Connection Of Relay Are Brought Out Onthis Panel.
    • 2 No Trip Contacts.
    • Relay Coil
