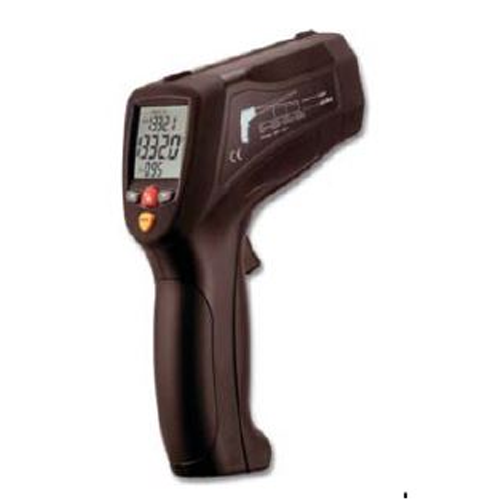

Infrared thermometer (Pyrometer)

Order Code: 19203472.135

Category: General Lab Equipment III

Infrared thermometer  (Pyrometer); IR Temperature Range:- - = 40 °C to 2000 °C; Distance: Spot  (90 % energy) :-  = 50:1Laser sighting Offset single laser < 1 mW;Data storage:-  = 99 points; Communication:- &nb...



SPECIFICATION

  • Infrared thermometer  (Pyrometer);
  • IR Temperature Range:- - = 40 °C to 2000 °C;
  • Distance: Spot  (90 % energy) :-  = 50:1Laser sighting Offset single laser < 1 mW;Data storage:-  = 99 points;
  • Communication:-  = USB 2.0 and above;Operating Altitude :-  = 3000 meters above mean sea level ;Storage Altitude :-   = 12,000 meters above mean sea level;
  • Relative Humidity :-  = 10 % to 90 % RH non-condensing up to 30 °C (86 °F) ;
  • Power :-  = 2 AA /LR6 Batteries or USB connection when used with a PC;
  • Minimum spot size :-  = 19 mm;
  • Emissivity :-  = Digitally adjustable from 0.10 to 1.00 by 0.01;
  • Battery Life :-  = 12 hours with laser and backlight on;
  • 100 hours with laser and backlight off, at 100 % duty cycle (continuously on );
  • Accuracy above  0 °C (32 °F):- = > 0 °C:  ±1 % or ± 1.0 °C  (> 32 °F:  ±1 % or ± 2 °F), whichever is greater;
  • K T/C Temperature Range:-  = -270 °C to 1372 °C (-454 °F to 2501 °F);
  • K T/C Input Accuracy :-- = 270 °C to -40 °C: ±(1 °C + 0.2 °/1 °C) (-454 °F to - 40 °F: ±(2 °F + 0.2 °/1 °F)) -40 °C to 1372 °C: ±1% or 1 °C (-40 °F to 2501 °F: ±1% or 2 °F), whichever is greater;Operating Temperature :-  = 0 °C to 50 °C (32 °F to 122 ;Storage Temperature :-  = -20 °C to 60 °C (-4°F to 140 °F) ;
