Feature:

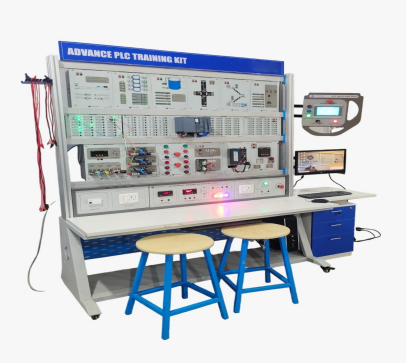

Multiple PLC Trainer contain nine different reputed PLC where any two PLC does not use same, It have used seventeen extra input and output modules for interfacing Nine different categories PLC. That's why students can be programming, interfacing with input and output load from nine different reputed categories PLC.As a result they are capable to control of machinery from industries where use of PLC.


Experiment List:

1. The constriction of nine different categories PLC.
2. Interfacing method of nine different categories PLC.
3. Programming method of nine different categories PLC.
4. Pick & Place using PLC & Pneumatic Air Suction method.
5. Pick & Place using PLC & Pneumatic Gripper method.
6. Water Pump Control using nine different categories PLC.
7. Fire Indication System using nine different categories PLC.
8. Traffic Light Control using nine different categories PLC.
9. The constriction of Pneumatic cylinder.
10. Sequential control of three Pneumatic cylinder using nine different categories PLC.
11. The constriction of Pneumatic solenoid valve.
12. Control of Pneumatic solenoid valve using PLC.
13. Interfacing of PLC & Pneumatic solenoid valve.
14. The method of Control Relay using PLC.
15. The methods of three phase Induction Motor Starter using PLC.
16. Forward-and-reverse operation methods of three phase Induction Motor.
17. The method of interfacing PLC with Input Switch.
18. The method of interfacing PLC with Input Sensor.
19. Operating method of interfacing proximity sensor with PLC.
20. Operating method of interfacing photo sensor with PLC.
21. Use of Variable Frequency Drive with PLC.
22. Programming method of Variable Frequency Drive with PLC.
23. The construction of Three Phase Induction motor.
24. Interfacing Method of Three Phase Induction motor with VFD & PLC.
25. The construction of Stepper Motor.
26. Interfacing Method of Stepper Motor with PLC.
27. The construction Seven Segment Display.
28. Interfacing Method of Seven Segment Display with PLC.
29. Interfacing Power Supply with nine different categories PLC


Technical Specification:

Main Structure:

1. Main Voltage : 1 Phase 220V per 50 or 60Hz
2. Working Table: 1EA
3. Working Frame - 3 Step
4. Module Storage Cabinet : 2EA
5. Electric accessories Storage Cabinet : 1EA
6. Ari Compressor : 1EA
7. Air compressor (basic equipment minimal machine): power: AC 220V(Plus or Minus)10 percent
8. 50Hz or 60Hz,motor power: 650W
9. Nominal volume Air compressor: 9L normal output voltage 0.7 MPa, noise degree: 66 dB
10. Dimension :L x W x H (mm):1735 x700 x 1660
11. Connection facility 2mm & 4mm Safety Socket
12. PLC Category -01(24258048.1-M01)
13. PLC:SIEMENS
14. Programming Language: Ladder, Functional Flow Chart Diagram
15. Built in Ethernet communication
16. PLC Power supply: (1 No.)
17. PLC Digital Input: 08
18. PLC Analog Input: 04 Nos
19. PLC Analog Output: 02 Nos
20. PLC Digital output: 04
21. PLC Display Unit : YES
22. PLC Input Voltage: 24VDC, 1Amp
23. Permissible range, Lower limit(DC): 20.4V
24. Permissible range, Upper limit(DC): 28.8V
25. Programming Software: LOGO Soft Comfort or equivalent
26. Programming Cable: PLC to PC communication Cable
27. Connection facility 2mm & 4mm Safety Socket
28. Module Dimension :L x W x H (mm):295 x 225 x 45
29. PLC Category-02 (24258048.1-M02)
30. PLC: Mitsubishi
31. Power Supply: 24VDC
32. Input Types:24VDC
33. Output Types: Relay
34. Communication Options: RS-232 , RS-485, RS-422, USB
35. CPU Functions: High speed counters, 32 bit floating point math
36. Program Memory Byte (Step): 128 K max. (64,000)
37. Ambient Temperature: 0-55 degree C (in operation) -20 (Plus or minus)70 degree C (in storage)
38. Ambient Humidity: 5-95percent RH, no condensation (in operation)
39. Noise Immunity: 1000 Vpp noise voltage, 1 microsecond pulse width at 30-100Hz
40. Digital Input: 8
41. Digital Output :8 (Relay)
42. Programming Software: Gx-Developer or equivalent
43. Programming Cable: SC-09 or equivalent
44. Connection facility 2mm & 4mm Safety Socket
45. Module Dimension :L x W x H (mm):295 x 225 x 45
46. PLC Category-03 (24258048.1-M03)
47. PLC:Fatek
48. PLC input: 8 points Digital
49. Triggering Power:24VDC
50. (2 points high speed 100KHz, 2 points medium speed 20KHz, 4 points medium
51. speed total 5KHz);
52. PLC Output: 6 points relay
53. Communication Port:RS232,USB
54. Built-in power supply: SPW14-AC or D12 or D24
55. Connection facility 2mm & 4mm Safety Socket
56. Module Dimension :L x W x H (mm):295 x 225 x 45
57. PLC Category-04 (24258048.1-M04)
58. PLC:Omron
59. Power Supply=220VAC
60. Triggering Voltage:24VDC
61. Digital Input=18
62. Digital Output=12(Relay)
63. Programming Cable: PLC to PC communication Cable
64. Connection facility 2mm & 4mm Safety Socket
65. Module Dimension :L x W x H (mm):295 x 225 x 45
66. PLC Category-05 (24258048.1-M05)
67. PLC: Delta
68. Parts: dvp10ec00r3
69. Power Supply:220VAC
70. Triggering Voltage:24VDC
71. Digital Input:06
72. Digital Output:04(Relay)
73. Programming Cable: PLC to PC communication Cable
74. Connection facility 2mm & 4mm Safety Socket
75. Module Dimension :L x W x H (mm):295 x 225 x 45
76. PLC Category-06 (24258048.1-M06)
77. PLC: Allen Bradley
78. PLC Digital Input:12 Nos
79. PLC Digital Output:07 Nos
80. PLC Analog Input:04 Nos
81. PLC Analog Output:01No
82. 20-point controllers
83. Provides embedded 0...10V non-isolated 4 channel analog input and 1 channel analog output for
84. speed control of an AC drive
85. Provides embedded communications via non-isolated serial port (for RS-232 and RS-485
86. communications) and Ethernet port
87. Communicates via EtherNet or IP
88. Provides embedded microSDTM slot for program transfer, datalog, and recipe management
89. Provides embedded support for up to four 10k thermistor temperature inputs
90. Supports program download through USB with an optional 3.5-in. Remote LCD
91. Supports up to two Micro800 Plug-in Modules
92. Programming Cable: PLC to PC communication Cable
93. Connection facility 2mm & 4mm Safety Socket
94. Module Dimension :L x W x H (mm):295 x 225 x 45
95. PLC Category-07 (24258048.1-M07)
96. PLC: LS
97. Power Supply=220 V AC
98. Digital Input =18
99. Digital Output=12(Relay)
100. Triggering Voltage:24VDC
101. Programming Cable: PLC to PC communication Cable
102. Connection facility 2mm & 4mm Safety Socket
103. Module Dimension :L x W x H (mm):295 x 225 x 45
104. PLC Category-08 (24258048.1-M08)
105. PLC: Schneider Electric
106. Built in display: LCD
107. High-speed Operation
108. Number or control scheme lines
109. Maximum Number of I & O Points:
110. 0...500 with FBD programming
111. 0...240 with ladder programming.
112. Cycle time : 6...90 ms
113. Backup time : 10 years at 25 degree C
114. Checks : Program memory on each power up
115. Supply voltage limits : 19.2...30 V
116. Discrete input voltage : 24 V DC
117. Discrete input current : 4 mA
118. IP degree of protection : IP20 (terminal block) conforming to IEC 60529
119. Mechanical durability : 10000000 cycles (relay output)
120. Output thermal current : 8 A for all 4 outputs (relay output)
121. Number of outputs : 4 relay output(s)
122. Discrete input number : 6 conforming to EN or IEC 61131-2 type 1
123. Programming Cable: PLC to PC communication Cable
124. Connection facility 2mm & 4mm Safety Socket
125. Module Dimension :L x W x H (mm):295 x 225 x 45
126. PLC Category-09 (24258048.1-M09)
127. PLC :Wecon
128. Parts: LX3V-0806MR-A2
129. Power Supply=220VAC
130. Digital Input=8
131. Digital Output=6 (Relay)
132. Triggering Voltage:24VDC
133. Programming Cable: PLC to PC communication Cable
134. Connection facility 2mm & 4mm Safety Socket
135. Module Dimension :L x W x H (mm):295 x 225 x 45
136. PLC Pick & Place using Pneumatic Air Suction Module: (24258048.1-M10)
137. Base Plate: Aluminum Profile
138. Structure: Aluminum Profile
139. Function Indicator: Tower Type (Red, Green, Yellow)
140. Carry Function: Using Air suction method
141. Pneumatic cylinder: 02 Pcs
142. Optical Fiber Sensor:02 set
143. Solenoid Vaulve:3 pcs
144. Cabinet control circuit power supply: DC24V
145. Temperature: -10 to 40 ; Humidity: getter than or equal 90 percent ;
146.  Air pressure: 0.4 to 0.6Mpa
147.  Input power : single-phase, three-wire AC 220V(plus minus)10 percent 50Hz or 60Hz
148.  Connection facility 2mm & 4mm Safety Socket
149.  Module Dimension :L x W x H (mm):600 x 460 x 20
150.  PLC Pick & Place using Pneumatic Gripper Module: (24258048.1-M11)
151.  Base Plate: Aluminum Profile
152.  Structure: Aluminum Profile
153.  Function Indicator: Tower Type (Red, Green, Yellow)
154.  Carry Function: Using pneumatic gripper method
155.  Pneumatic cylinder: 02 Pcs
156.  Optical Fiber Sensor:02 set
157.  Solenoid Vaulve:3 pcs
158.  Cabinet control circuit power supply: DC24V
159.  Temperature: -10 to 40 ; Humidity: greater than or equal 90percent ;
160.   Air pressure: 0.4 to 0.6Mpa
161.   Input power : single-phase, three-wire AC 220V plus minus 10 percent 50Hz or 60Hz
162.   Connection facility 2mm & 4mm Safety Socket
163.   Module Dimension : L x W x H (mm):600 x 460 x 20
164.   Water Pump Control Module: (24258048.1-M12)
165.   Base Plate: Aluminum Profile
166.   Water Chamber: Upper And Lower
167.   Water through: Solenoid Valve
168.   Water Pump: 5W
169.   Operating Voltage : 24VDC
170.   PLC Connection facility 2mm & 4mm Safety Socket
171.   Module Dimension : L x W x H (mm):600 x 460 x 20
172.   Fire Indication System Module: (24258048.1-M13)
173.   Smoke Sensor
174.   Interfacing PLC and DC power supply Connection facility
175.   Interfacing facility With water level control Module
176.   Operating Voltage : 24V
177.   PLC Connection facility 2mm & 4mm Safety Socket
178.   Module Dimension :L x W x H (mm):295 x 225 x 45
179.   Traffic Light Control Module:(AL-401A-M14)
180.   Built-in ,Green, Yellow, Red Indicator for interface PLC and DC power supply Connection facility
181.  Operating Voltage : 24V
182.  PLC Connection facility 2mm & 4mm Safety Socket
183.  Module Dimension :L x W x H (mm):295 x 225 x 45
184.  Pneumatic Control Module: (AL-401A-M15)
185.  Pneumatic cylinder: 3EA
186.  Temperature: -10 to 40 ;
187.  Humidity: greater than or equal 90 percent ;
188.  Air pressure: 0.4 to 0.6Mpa
189.  PLC Connection facility 2mm & 4mm Safety Socket
190.  Module Dimension :L x W x H (mm):295 x 225 x 45
191.  Pneumatic solenoid valve Module: (AL-401A-M16)
192.  Pneumatic solenoid valve: 3EA
193.  Operating Voltage : 24V
194.  PLC connection point : 3EA
195.  PLC Connection facility 2mm & 4mm Safety Socket
196.  Module Dimension :L x W x H (mm):295 x 225 x 45
197.  Interfacing facility Pneumatic control Module
198.  Relay Control Module: (AL-401A-M17)
199.  Double pole Double Through Relay: 04 Set
200.  Relay Operating Voltage:24V
201.  PLC Connection facility 2mm & 4mm Safety Socket
202.  Module Dimension :L x W x H (mm):295 x 225 x 45
203.  Motor Starter module: (AL-401A-M18)
204.  Magnetic Contact switch:02 nos
205.  Star Delta Status Indication facility
206.  Relay Operating Voltage:220V to 240VAC
207.  PLC Connection facility 2mm & 4mm Safety Socket
208.  Module Dimension :L x W x H (mm):295 x 225 x 45
209.  Input Switch Module: (AL-401A-M19)
210.  Pushbutton Switch:04 Nos
211.  Push on Push Off Switch: 04 Nos
212.  Relay Operating Voltage:24VDC
213.  PLC Connection facility 2mm & 4mm Safety Socket
214.  Module Dimension :L x W x H (mm):295 x 225 x 45
215.  Sensor module: (AL-401A-M20)
216.  Proximity Sensor:02 Nos
217.  Photo Sensor:02 Nos
218.  Thermocouplar:02 Nos
219.  Operating Voltage:24VDC
220.  PLC Connection facility 2mm & 4mm Safety Socket
221.  Module Dimension :L x W x H (mm):295 x 225 x 45
222.  Output Indicator Module: (AL-401A-M21)
223.  Output Indicator:04 Nos
224.  Operating Voltage:220V~240VAC
225.  PLC Connection facility 2mm & 4mm Safety Socket
226.  Module Dimension :L x W x H (mm):295 x 225 x 45
227.  Variable Frequency Drive Module: (AL-401A-M22)
228.  Variable Frequency Drive:01 No
229.  Input Three Phase/Single Phase
230.  Output Three Phase 220VAC (PWM)
231.  Capacity:400watts
232.  Input Operating Voltage:220V~240VAC
233.  PLC Connection facility 2mm & 4mm Safety Socket
234.  Module Dimension :L x W x H (mm):295 x 225 x 45
235. Three Phase Induction motor Module: (AL-401A-M23)
236. Three Phase Induction Modeule:01 No
237. Connection system : Delta
238. Input Operating Voltage:220V~240VAC
239. PLC Connection facility 2mm & 4mm Safety Socket
240. Module Dimension :L x W x H (mm):295 x 225 x 45
241. Stepper Motor Control Module: (AL-401A-M24)
242. Unipolar Stepper Motor:01 No
243. Bipolar Stepper Motor:01 No
244. Input Operating Voltage:5V/12V
245. PLC Connection facility 2mm & 4mm Safety Socket
246. Module Dimension :L x W x H (mm):295 x 225 x 45
247. Seven Segment Display module: (AL-401A-M25)
248. Seven Segment Display:02 no
249. Input Operating Voltage:5V & 12V
250. PLC Connection facility 2mm & 4mm Safety Socket
251. Module Dimension :L x W x H (mm):295 x 225 x 45
252. Power Supply Module: (AL-401A-M26)
253. Input Operating Voltage:220V~240VAC
254. Output AC Voltage:220V,50Hz
255. Output DC Voltage:5V(1Amp),12V(1Amp),24V(1Amp)
256. PLC connection point facility 2mm and 4mm Safety Socket
257. Fuse for Safety protection facility.
258. Accessories:
259. Air Compressor-01 no
260. Connecting jack 2mm & 4mm : 01 Set
261. Power Cable: 01 no
262. PLC to PC Communication cable: 09 Sets
263. Simulation software for compatible PLC
264. English Manual & CD: 01 Set
