Industrial machine opperator sensor training simulator

Order Code: 24257681.1

Category: General Lab Equipment V

Training Simulator The Training Simulator is designed to train students in the operation of various industrial sensors used in automation systems. It enables hands-on learning by converting measured stimuli into electrical signals for analysis. ...



SPECIFICATION

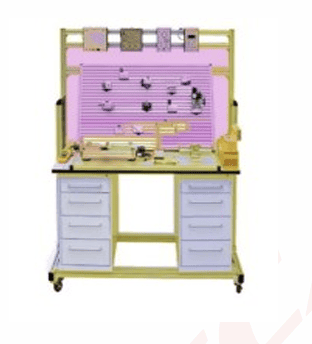

Training Simulator

The Training Simulator is designed to train students in the operation of various industrial sensors used in automation systems. It enables hands-on learning by converting measured stimuli into electrical signals for analysis.

Key Features

  • Purpose:

    • Provides training on industrial machine sensors for automation systems.

    • Converts measured stimuli into electrical signals for easy analysis.

  • Test Bench:

    • Includes a PLC rack for connecting sensors, relays, and a Variable Frequency Drive (VFD) to I/O cards.

    • Allows students to test different sensor functions through multiple inputs.

  • Supported Sensors:

    1. Photoelectric sensor

    2. Capacitance sensor

    3. Inductance sensor

    4. Electromagnetic sensor

    5. Ultrasonic sensor

    6. Capacitive proximity sensor

    7. Inductive proximity sensor

    8. Electromagnetic proximity sensor

    9. PT100 temperature detection sensor

    10. Motor speed test sensor

  • Power Requirements:

    • Input Power: AC 220V ±10% (single-phase)

    • Sensor Power Supply: DC 12-24V

  • Dimensions (mm):

    • Length: 1500 (±600)

    • Width: 800 (±300)

    • Height: 1800 (±400)

  • Structure:

    • Mounted on a sturdy metal frame with lockable wheels for mobility.

Additional Information

  • Includes installation and training at the training center.

  • Warranty: Minimum 1 year.

  • Delivery: Maximum 3 months after order issuance.
