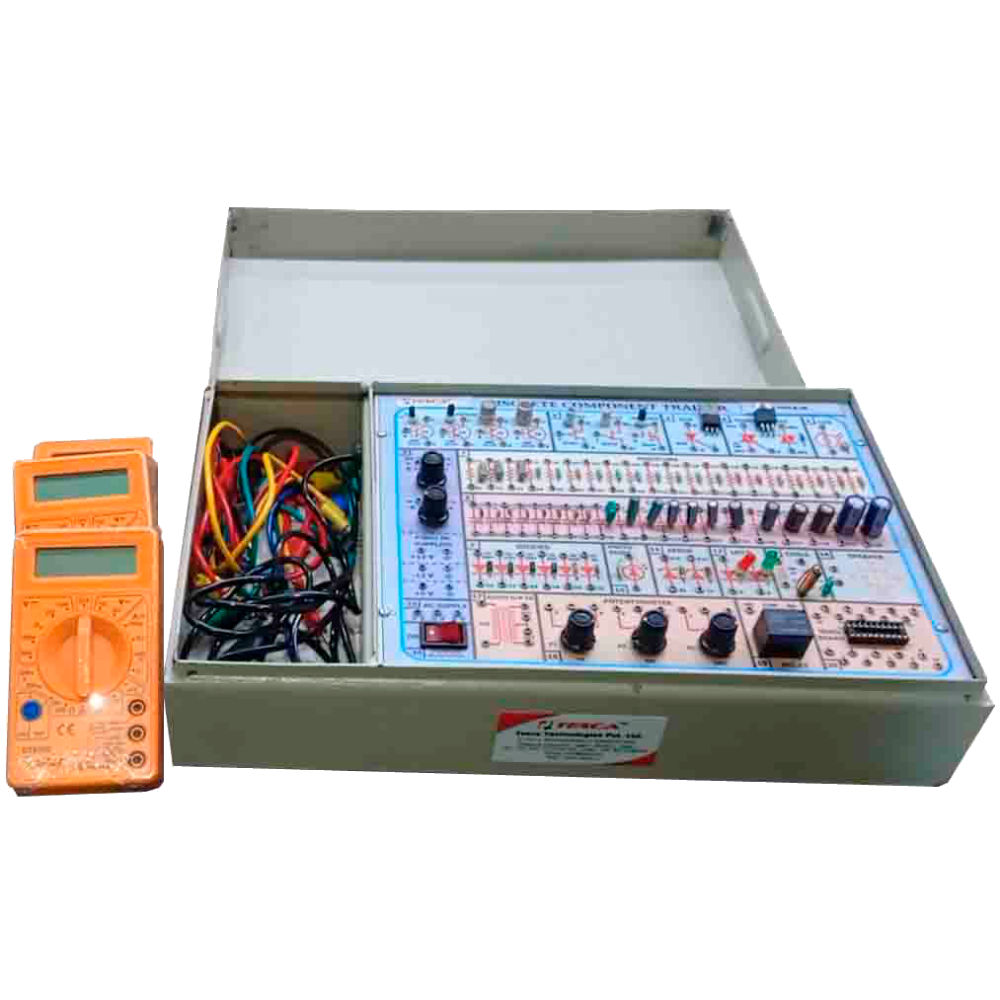

Industrial Electronics Trainer Part-02

Order Code: 23246836.5

Category: General Lab Equipment II

Experimental Training Board has been designed specifically for the study of Discrete Electronic Components. It contains a wide selection of discrete components and A.C. & D.C. Power Supplies. The capabilities of this trainer extend far beyond the...



SPECIFICATION

Experimental Training Board has been designed specifically for the study of Discrete Electronic Components. It contains a wide selection of discrete components and A.C. & D.C. Power Supplies. The capabilities of this trainer extend far beyond the experiments described. Although only a finite number of experiments have been described yet other circuits as per individuals requirements can also be designed using the available components and power supplies.

Practical experience on this board carries great educative value for Science and Engineering Students.

Features

  1. The board consists of the following built in parts:
  2.  ±0-15V D.C. at 50 mA, IC Regulated Power Supply.
  3.  ± 12V D.C. at 100 mA, IC regulated and short circuit protected Power Supply.
  4.  5V D.C. at 100mA, IC Regulated Power Supply.
  5.  9-0-9V A.C. at 100 mA, Power Supply.
  6.  4 Transistors, FET, UJT, MOSFET, SCR, Triac, Diac, LDR, 20 Resistors, 20 capacitors, 6 Diodes, Photo Diode, 2 Zener diodes, 2 LED, 2 Drum Coil, Speaker, Audio O/P Transformer, 3 Potentiometers, Vero Board.
  7.  12 V, Relay with one change over contacts rated at 6 Amp. for resistive and 3 Amp. for inductive Load at 230V.
  8.  Mains ON/OFF switch, fuse and Neon Indicator are provided.
  9.  The unit is operative on 230V ±10% at 50Hz A.C. Mains.
  10.  Adequate no. of patch cords stackable from rear both ends 2mm spring loaded plug length 1/2 metre.
  11.  Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections & observation of waveforms.
  12.  Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.

On Board Sections

  1.  DC Supplies
  2.  Transistors
  3.  FET/UJT/MOSFET
  4.  SCR
  5.  TRAIC/DIAC
  6.  LDR
  7.  Resistors
  8.  Capacitors
  9.  Diodes
  10.  Photo Diodes
  11.  Zener Diodes
  12.  LED's
  13.  Drum Coil
  14.  Speaker
  15.  AC Supplies
  16.  Audio O/P TX
  17.  Potentiometer
  18.  Relay

Experiments

  1.  Verification of ohm's law
  2.  Verification of kirchoff's current law
  3.  Verification of kirchoff's voltage law
  4.  Verification of superposition theorem
  5.  Verification of thevenin's theorem
  6.  Verification of reciprocity theorem
  7.  study of diode characteristics
  8.  study of Zener diode characteristics
  9.  study of Zener diode as voltage regulator
  10.  study of Zener diode and transistor as series voltage regulator
  11.  Study of basic gates using diodes & transistor
  12.  Oscillator multivibrators
  13.  Study of U.J.T. Relaxation Oscillator
  14.  Study of SCR characteristics
  15.  Study of TRIAC characteristics
  16.  Study of TRIAC as switch
  17.  Study of LED characteristics
  18.  Study of LDR characteristics & its applications
  19.  Study of photo diode characteristics & its applications
  20.  Common Base Configuration of a Transistor
  21.  Power Amplifier
  22.  FET Characteristics & Source Follower 1.Study of static characteristics of an FET 2.Application Of an FET as a Source Follower
  23.  Application Of LED in Constant Current Sources


Optional Experiments

  1.  Verification of low pass RC circuit & find out its cut-off frequency
  2.  observation of low pass RC circuit as an integrator
  3.  Verification of high pass RC circuit & find out its cut-off frequency
  4.  observation of high pass RC circuit as an Differentiator
  5.  Implementation of low pass RL circuit & find out its cut-off frequency
  6.  Implementation of High pass RL circuit & find out its cut-off frequency
  7.  Study of Diode as Clipper Circuit
  8. 1. Diode as Clipper Circuit
  9. 2.Diode as biased Circuit
  10.  Study of diode as clamping circuit
  11.  Study of diode as voltage doubler 33. Study of diode as rectifiers
  12.  Study of transistorized amplifier with different configuration
