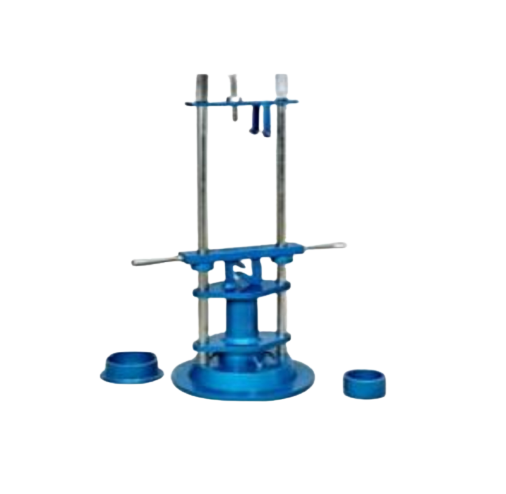

Impact Tests Apparatus

Order Code: 22236096.131

Category: General Lab Equipment I

For Determining The Aggregate Impact Value Of Coarse Aggregate. Consists Of Base Weighing Between 20-30 Kg With A Lower Surface Of Not Less Than 30 Cm And Support Columns To From A Rigid Frame Work Around The Quick Release Trigger Mech...



SPECIFICATION

  • For Determining The Aggregate Impact Value Of Coarse Aggregate.
  • Consists Of Base Weighing Between 20-30 Kg With A Lower Surface Of Not Less Than 30 Cm And Support Columns To From A Rigid Frame Work Around The Quick Release Trigger Mechanism To Ensure An Effective Free Fall Of The Hammer During Test.
  • The Free Fall Can Be Adjusted Through 380 ± 5.0 Mm.
  • The Hammer Is Provided With A Locking Arrangement.
  • A Metal Tup(Hammer) Weighing 13.5 To 14.0 Kg, The Lower End Of In Cylindrical Shape, 100 Mm In Diameter And 5 Cm Long With A 2 Mm Chamfer At The Lower Edge And Case Hardened. Complete With A Cylindrical Cup, 102 Mm Dia X 50 Mm Depth, One Measure 75 Mm Dia X 50 Mm Deep And A Tamping Rod Of Circular Cross Section 10 Mm In Diameter And 230 Mm Long,
  • Rounded At One End.
  • As Per Is: 2386
