Key Features

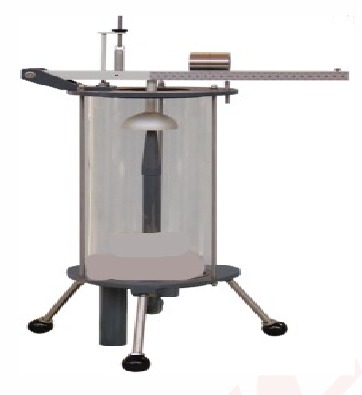

• High-Velocity Water Jet: The apparatus is designed to investigate the impact force produced when a high-velocity jet of water strikes plates, simulating turbine vanes.
• Transparent Cylinder with Tapered Nozzle: The cylinder, containing a vertically tapered nozzle, ensures optimal jet formation for accurate impact testing.
• Test Plate Mounting: The test plate is connected to a weigh beam assembly with a jockey weight, which is used to measure the jet force.
• Hydraulic Bench Compatibility: The nozzle, which is supplied by the hydraulic bench, generates a high-velocity jet of water that strikes the test plate.
• Draining System: The cylinder includes a drain tube at the base to allow for the removal of excess water during testing.
• Easy-to-Interchange Test Plates: Test plates (flat, hemispherical, conical, and angled) are designed to be easily interchangeable, with no tools required for quick changes.

• Leg Mounting: The apparatus is mounted on legs and placed on top of a hydraulic bench, making it stable and easy to operate.
• Standards Compliance: Manufactured according to USA, UK, Japan, and Switzerland standards to ensure reliability and accuracy.

Experimental Capabilities
Impact Force Measurement:
• Measure the impact force on flat and hemispherical plates and compare results with momentum change.
• Measure the impact force on angled flat plates and conical plates to observe how the angle of incidence affects force.
• Momentum Change Comparison: Compare the measured force with theoretical calculations based on momentum change in the jet. Impact Force Measurement: Measure the impact force on flat and hemispherical plates and compare results with momentum change. Measure the impact force on angled flat plates and conical plates to observe how the angle of incidence affects force. Momentum Change Comparison: Compare the measured force with theoretical calculations based on momentum change in the jet.

Technical Specifications
• Test Plate Types:
• Flat Plate: Diameter of 74 mm or higher, aligned with the jet axis for optimal impact measurement.
• Hemispherical Plate: Diameter of 60 mm or higher.
• Conical Plate: Minimum diameter of 75 mm, with a 120° angle.
• Angled Plate: Minimum diameter of 75 mm, with a 30° angle.
• Jockey Weight: Minimum weight of 600 g for accurate measurement of the jet force.
• Weight Beam Scale: 250 mm or higher with 1 mm divisions for precise force readings.
• Nozzle Diameter: Nominal diameter of 10 mm or higher, ensuring the production of a high-velocity jet

• Distance from Nozzle to Impact Point: Minimum of 35 mm or higher, ensuring proper jet impact on the test plate.

• Drain Tube: Located at the base of the cylinder for easy drainage of water.
• Accessories: Includes all necessary pipe clips, tubing, and a printed operation manual for easy setup and operation.

Hydraulics Data Management System Software
• Manual Data Entry and Recording: Simple software tool designed for efficient manual data entry and recording of experimental data.
• User-Friendly Interface: The software features an intuitive, easy-to-use interface with clear, customizable display options.
• Automatic Calculations & Data Export: Automatically calculates results, charts data, and exports it for further analysis, saving valuable time for students and lecturers.
• Data Logging: Records data for future analysis, printing, and report generation.
• Digital or Analog Display: Data can be displayed either digitally or as an analog meter, based on user preference.
• Excel Export: Export data to Excel for easy manipulation, analysis, and reporting.
• Real-Time Charting: Automatically updates charts in real-time as data is entered, providing instant feedback during experiments.
