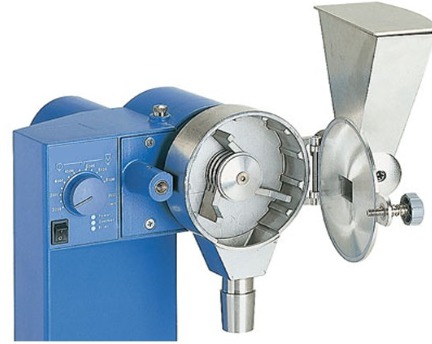

Impact grinding head

Order Code: 24258342.13.3

Category: General Lab Equipment V

Features : For crushing brittle, hard materials such as minerals, building materials up to Mohs hardness 6. Before being discharged, the ground material passes through a sieve. This sieve is interchangeable and available in d...



SPECIFICATION

Features :

  • For crushing brittle, hard materials such as minerals, building materials up to Mohs hardness 6.

  • Before being discharged, the ground material passes through a sieve.

  • This sieve is interchangeable and available in different hole sizes (not incl. with delivery).

  • The ground material can then be collected using an NS 29 standard ground vessel.

Technical Specifications :

  • Process type : inline

  • Circumferential speed max. [m/s] : 34

  • Feed hardness max. [Mohs] : 6

  • Feed grain size max. [mm] : 10

  • Material milling chamber : stainless steel 1.4308

  • Dimensions (W x H x D) [mm] : 320 x 450 x 300

  • Weight [kg] : 2.942

  • Permissible ambient temperature [°C] : 5 – 40
