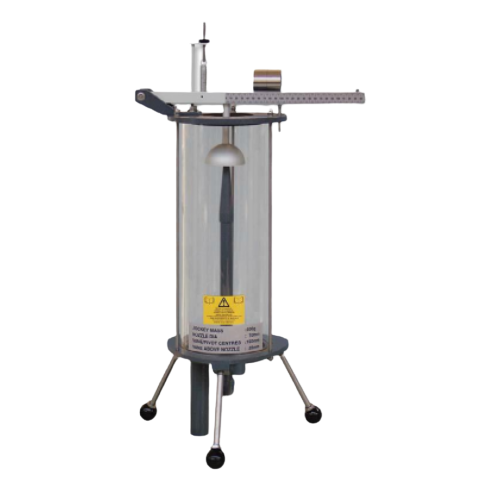

Impact of a Jet

Order Code: 22235603.1

Category: General Lab Equipment I

Nett dimensions and weight: 740 mm high x 420 mm wide x 310 mm and 7 kg Approximate packed dimensions and weight: 0.176 m3 and 14 kg Flat plate: 74 mm diameter, normal to and coincident with the jet axis Hemispherical plate: 60 mm diameter ...



SPECIFICATION

  • Nett dimensions and weight: 740 mm high x 420 mm wide x 310 mm and 7 kg
  • Approximate packed dimensions and weight: 0.176 m3 and 14 kg
  • Flat plate: 74 mm diameter, normal to and coincident with the jet axis
  • Hemispherical plate: 60 mm diameter
  • Conical plate: 75 mm diameter 120°
  • Angled plate: 75 mm diameter 30°
  • Ancillaries (included): All necessary pipe clips and tubing
