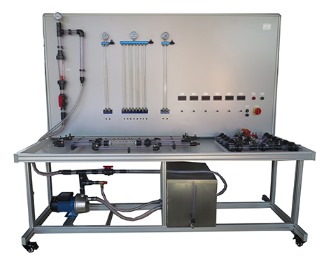

Hydrodynamic Fluid Mechanics Lab Equipment Teaching Equipment
Order Code: 24257380.1
Category: General Lab Equipment V
Vocational Training Equipment Clear acrylic sides at the working section for total visibility of the flow. The canal is equipped with a PVC inlet tank, and is designed for a connection dumped into the hydraulic bench. The chu...
SPECIFICATION
Vocational Training Equipment
-
Clear acrylic sides at the working section for total visibility of the flow.
-
The canal is equipped with a PVC inlet tank, and is designed for a connection dumped into the hydraulic bench.
-
The chute is mounted on a rigid frame, and can be tilted by the use of a calibrated screw jack, allowing precise adjustment of the pipe slope.
-
The inlet tank includes a dissipation device to diffuse the water to flow before entering the pipe, to ensure smooth and uniform flow.
-
The level of the section of the working channel is controlled using an overflow weir at the end of discharge.
-
Driving gradient: adjustable between -1% and + 3%.
-
Driving dimensions: 5.000 x 76 x 250 mm
-
Dimensions: 5.410 x 620 x 1.460 mm
Following experiments can be carried out with common basic table, with separate experimental setups , which can be connected to hydraulic bench with flexible pipe:
-
Bernoulli's Theorem Apparatus
-
Orifice and Mouth Piece
-
Flow measurement by Venturimeter
-
Flow measurement by Orifice meter
-
Losses due to Friction in Pipe Lines
-
Losses in Pipe fittings and pipe bends
-
Tilting Flume
-
Flow over notches
-
Study of Pressure Measurement
-
Pitot Static Tube
