HYDRAULIC TRAINING SET-ADVANCED LEVEL

Order Code: 22235598.6

Category: General Lab Equipment II

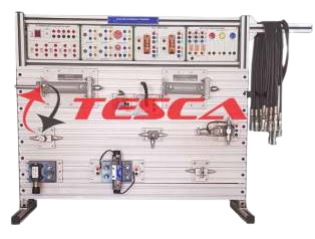

HYDRAULIC TRAINING SET -ADVANCED LEVEL Advanced  Hydraulic  Training Set - The set consists of the following items: Cylinder guide-1 unit Attachable on hydraulic cylinder To be used with 2/2 stem actuated valve Double acting c...



SPECIFICATION

HYDRAULIC TRAINING SET -ADVANCED LEVEL

  1. Advanced  Hydraulic  Training Set - The set consists of the following items:
  2. Cylinder guide-1 unit
  3. Attachable on hydraulic cylinder
  4. To be used with 2/2 stem actuated valve
  5. Double acting cylinder-1 unit
  6. Pressure range : 0 – 120 bar
  7. Operating pressure : 60 bar
  8. Diameter : 25 mm
  9. Rod diameter : 18 mm
  10. Cylinder stroke : 200 mm
  11. 4/3-way hand lever valve with recirculating midposition-1 unit
  12. Pressure range : 0 – 120 bar
  13. Operating pressure : 60 bar
  14. Manual Operation
  15. PT bypassed
  16. 4/3-way valve with relieving mid-position (ABT connected)-1 unit
  17. Pressure range : 0 – 120 bar
  18. Operating pressure : 60 bar
  19. Manual Operation
  20. ABT connected
  21. 2/2-way stem actuated valve-1 unit
  22. Pressure range : 0 – 120 bar
  23. Operating pressure : 60 bar
  24. Stem actuated valve
  25. Normally closed valve
  26. Pressure relief valve, directly controlled-1 unit
  27. Pressure range : 0 – 120 bar
  28. Operating pressure : 60 bar
  29. Manual regulating
  30. Flow dividing valve-1 unit
  31. Pressure range : 0 – 120 bar
  32. Operating pressure : 60 bar
  33. Dividing rate A : B = 50 : 50
  34. Shut off/Counterbalancing valve-1 unit
  35. Pressure range : 0 – 120 bar
  36. Operating pressure : 60 bar
  37. Manual regulating
  38. External pilot connection
  39. External drain
  40. 1-way flow control valve-1 unit
  41. Pressure range : 0 – 120 bar
  42. Flow rate : 10 l/min
  43. Operating pressure : 60 bar
  44. Manual regulating
  45. T-connector-3 unit
  46. Pressure range : 0 – 120 bar
  47. Operating pressure : 60 bar
  48. Pipe resister 1-1 unit
  49. Pressure range : 0 – 120 bar
  50. Operating pressure : 60 bar
  51. Diameter : 4
  52. Length : 1300 mm
  53. Steel pipe
  54. Pipe resister 2-2 unit
  55. Pressure range : 0 – 120 bar
  56. Operating pressure : 60 bar
  57. Diameter : 6
  58. Length : 1300 mm
  59. Steel pipe
  60. Pipe resister 3-1 unit
  61. Pressure range : 0 – 120 bar
  62. Operating pressure : 60 bar
  63. Diameter : 4
  64. Length : 2600 mm
  65. Steel pipe
  66. Workbook – Advanced Hydraulics English
  67. Training at site for 2 days
  68. Warranty- 2 years warranty against manufacturing defects
