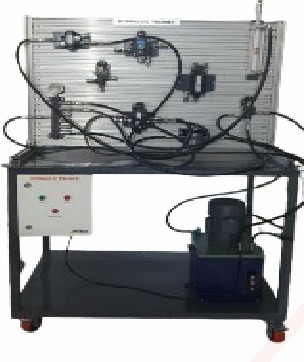

Hydraulic Trainer Kit

Order Code: 24258351.5

Category: General Lab Equipment V

Features • Compact & Mobile Design – Equipped with a sturdy trolley frame and caster wheels for easy mobility. • Efficient Power Transmission – Includes a phase foot & flange-mounted electric motor coupled with a hydra...



SPECIFICATION

Features
• Compact & Mobile Design – Equipped with a sturdy trolley frame and caster wheels for easy mobility.
• Efficient Power Transmission – Includes a phase foot & flange-mounted electric motor coupled with a hydraulic gear pump.
• Versatile Control Mechanism – Features direction control valves, sequence valves, and pressure reducing valves for optimal hydraulic circuit management.
• Durable & High-Performance Components – Built with high-quality materials to withstand high pressure and prolonged usage.
• Enhanced Safety & Filtration – Incorporates a hydraulic tank with filter and breather to maintain system cleanliness and performance.

Technical Specifications

  • Trolley with Frame & Caster Wheels : Provides mobility and support for the system
  • Hydraulic Tank with Filter & :  Ensures clean fluid circulation and prevents
  • Breather :  contamination.
  • Phase Foot & Flange Mounted Electric Motor : Drives the hydraulic pump efficiently.
  • Bell Housing : Connects motor and pump securely.
  • Flexible Coupling : Reduces vibration and misalignment.
  • Pressure Gauges :  Monitors system pressure accurately.
  • Gear Pump :  Delivers hydraulic fluid at a consistent flow rate.
  • Relief Valve : Protects the system by controlling pressure limits
  • 4/3 Way Direction Control Valve :  Regulates the movement of hydraulic actuators.
  • Valve Mounting Plate :  Provides a stable base for mounting valves.
  • Single Acting Cylinder  :  Executes linear motion in one direction.
  • Double Acting Cylinder : Enables controlled movement in both directions.
  • 4/2 Way Direction Control Valve : Controls hydraulic flow direction.
  • Sequence Valve : Ensures operations occur in a predefined sequence
