Heat exchanger supply unit
Order Code: 24258098.81
Category: General Lab Equipment V
Heat exchanger supply unit Measuring the transfer characteristics of five different heat exchanger models, system control via PLC Features • comparison of different heat exchangers • intuitive experiment execution via touch screen (HMI)...
SPECIFICATION
Heat exchanger supply unit
Measuring the transfer characteristics of five different heat exchanger models, system control via PLC
Features
• comparison of different heat exchangers
• intuitive experiment execution via touch screen (HMI)

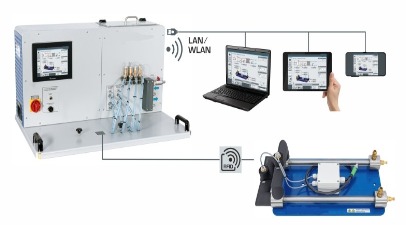

• integrated router for operation and control via an end device and for screen mirroring on up to 10 end devices: PC, tablet, smartphone
• automatic identification of accessories via RFID technology
Specification
• supply unit for investigation and comparison of different heat exchangers
• automatic identification and configuration of accessories via a contactless, electronic RFID interface
• plant control with PLC, operation via touch screen
• screen mirroring: possible to mirror the user interface on up to 10 end devices
• hot water circuit with tank, heater, pump and protection against lack of water
• cold water circuit from laboratory mains or water chiller
• water connections with quick-release couplings
• data acquisition via PLC on internal storage, access to stored measured values via WLAN with integrated router/ LAN connection with customer's own network
Technical data
PLC: Weintek cMT3092X Pump
• power consumption: 120W
• max. flow rate: 600L/h
• max. head: 30m
Heater
• power output: 3kW
• thermostat: 10...70°C
Flow control for hot and cold-water circuit: 0,3...3L/min
Hot water tank: approx. 10L
Measuring ranges
• temperature: 5x 0...100°C
• flow rate: 2x 0, 3.3L/min
230V, 50Hz, 1 phase
