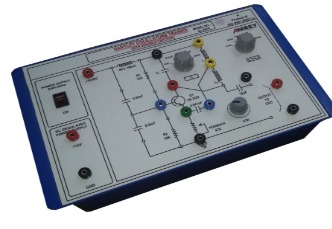

Hartley and Colpitts Oscillator Trainer
Order Code: 24258359.12
Category: General Lab Equipment V
SCOPE OF LEARNING • Study and Construction of Hartley Oscillator • Study and Construction of Colpitts Oscillator TECHNICAL SPECIFICATIONS Power Supply: • DC Power Supply: IC Regulated +15V DC, 150mA • Operates on Mains Power...
SPECIFICATION
SCOPE OF LEARNING
• Study and Construction of Hartley Oscillator
• Study and Construction of Colpitts Oscillator
TECHNICAL SPECIFICATIONS
Power Supply:
• DC Power Supply: IC Regulated +15V DC, 150mA
• Operates on Mains Power: 230V, 50Hz ±10%
Mounted Components:
• Transistor: 2N2222
• Resistors
• Capacitors
• Inductors
Output Performance (Approximate):
• Hartley Oscillator: 1 MHz, 304 kHz
• Colpitts Oscillator: 850 kHz, 1.3 MHz
SALIENT FEATURES
• Front panel made of high-class insulated Printed Circuit Board (PCB) sheet with well-printed circuits and symbols
• Fuse for short circuit protection
• Instruction manual included
• Connections provided via 4mm colored sockets
• Includes 4mm patch cords
• Trainer housed in an ABS plastic cabinet
• Trainer set dimensions: 10” x 8”
OPTIONAL ACCESSORIES
• CRO (Cathode Ray Oscilloscope)
