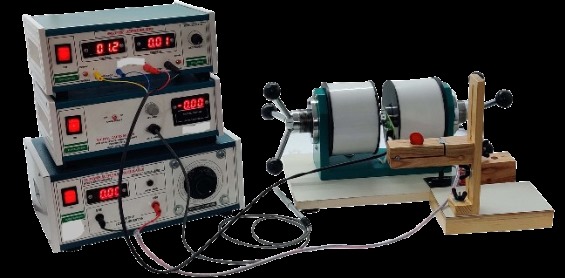

Hall Effect Experimental Setup

Order Code: 24257912.1

Category: General Lab Equipment V

Hall Probe :  Contacts : Phosphor Bronze Adjustable Hall Voltage : 0.1-1 Volt /100mA/KG Thickness of Ge Crystal : As per mention on Sample Resistivity : ~=10 Constant Current Power Supply for Ha...



SPECIFICATION

Hall Probe :

  • Contacts : Phosphor Bronze Adjustable

  • Hall Voltage : 0.1-1 Volt /100mA/KG

  • Thickness of Ge Crystal : As per mention on Sample

  • Resistivity : ~=10

Constant Current Power Supply for Hall Probe

  • Digital Millivoltmeter : 0-200mV, 0-20mA

  • Accuracy : 0.1% of the reading 1 digit

  • Load Regulation : 0.03% for no load to full load.

  • Impedance : 1 Ohm

  • Display : 3 ½ digit 7 Segment LED( 12.5mm) Height

Power Supply for Electromagnet

  • Standard Accessories :- 0 - 6Amp, 60V, High Accuracy,

  • High Stability, Allow full-scale long-time operation, Voltage and current continuously variable within nominal value current continuously variable.

Electromagnet

  • Low Cost Electromagnet Made of Soft Iron, Specially  design for Hall Effect and other experiments, mounted on a Wooden Base for Stable performance,

  • Pole pieces:- 50mm Diameter flat

  • Field :- 7.5kG 10mm. air-gap

  • Energizing Coils :- Two coils each with total resistance of 9ohms.

Digital Gauss Meter

  • Range : 0-2 K Gauss & 0-20 K Gauss

  • Resolution : 1Gauss at 0-2 K Gauss Range

  • Accuracy : 0.5%

  • Display : 3 ½ Digit, 7 Segment LED DPM.

  • Power : 200V , 50Hz

  • Special : Indicates the direction of the magnetic field
