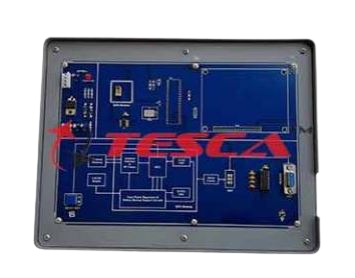

GPS Technology Training System

Order Code: 22236030.3

Category: General Lab Equipment I

  GPS Receiver Board Frequency: 1.575 GHz (minimum) Channels: 12 or higher Receiver Sensitivity: -165dBW (minimum) Update Rate: 1 second or less Acquisition Time: 15 seconds or less Onboard clock and system processor Position Acc...



SPECIFICATION



  • GPS Receiver Board Frequency: 1.575 GHz (minimum)
  • Channels: 12 or higher
  • Receiver Sensitivity: -165dBW (minimum)
  • Update Rate: 1 second or less
  • Acquisition Time: 15 seconds or less Onboard clock and system processor
  • Position Accuracy of Non-differential GPS: 15 meters RMS
  • Velocity Accuracy : 0.2 m/s RMS at steady state
  • One-pulse-per-second: ±1 micro second
  • Attenuation of GPS Antenna: 30dB/100meter
  • Polarization: Right hand circular
  • Software Interface: Dual channel CMOS / TTL level with user selectable baud rate (300, 600, 1200, 2400, 4800)
  • ASCII Output: GPALM, GPGGA, GPGSA, GPGSV, GPRMC,GPVTG, PGRME, PGRMT, PGRMV, PGRMF, LCGLL, LCVTG
  • Standard accessories with printed operation manual
