GPS Shield Retail

Order Code: 21224891.30

Category: General Lab Equipment II

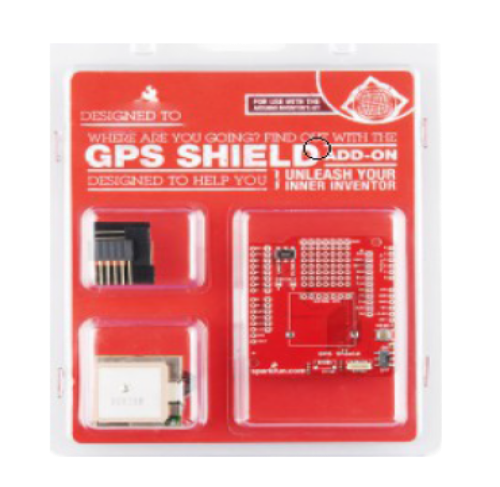

Includes: GPS Shield EM-406 GPS Module EM-406 Interface Cable Set of Stackable Headers Features: EM-406 connector populated EM-408 and EB-85A connector footprints provided and connected for optional use UP501 connector and ...



SPECIFICATION

Includes:

  • GPS Shield
  • EM-406 GPS Module
  • EM-406 Interface Cable
  • Set of Stackable Headers

Features:

  • EM-406 connector populated
  • EM-408 and EB-85A connector footprints provided and connected for optional use
  • UP501 connector and footprint
  • Coin cell battery socket footprint provided and connected for optional battery backup of EB-85A GPS module
  • Standard Arduino sized shield
  • Prototyping area
  • GPS serial and PPS signals broken out to a 0.1"" header for additional device connections
  • Arduino reset button
  • DLINE/UART switch controls serial communications
  • ON/OFF switch controls power to GPS module

Documents:

  • Schematic
  • Eagle Files
  • GPS Quickstart Guide
  • Assembly Guide
  • Example Sketch
  • Replaces: RTL-10346
